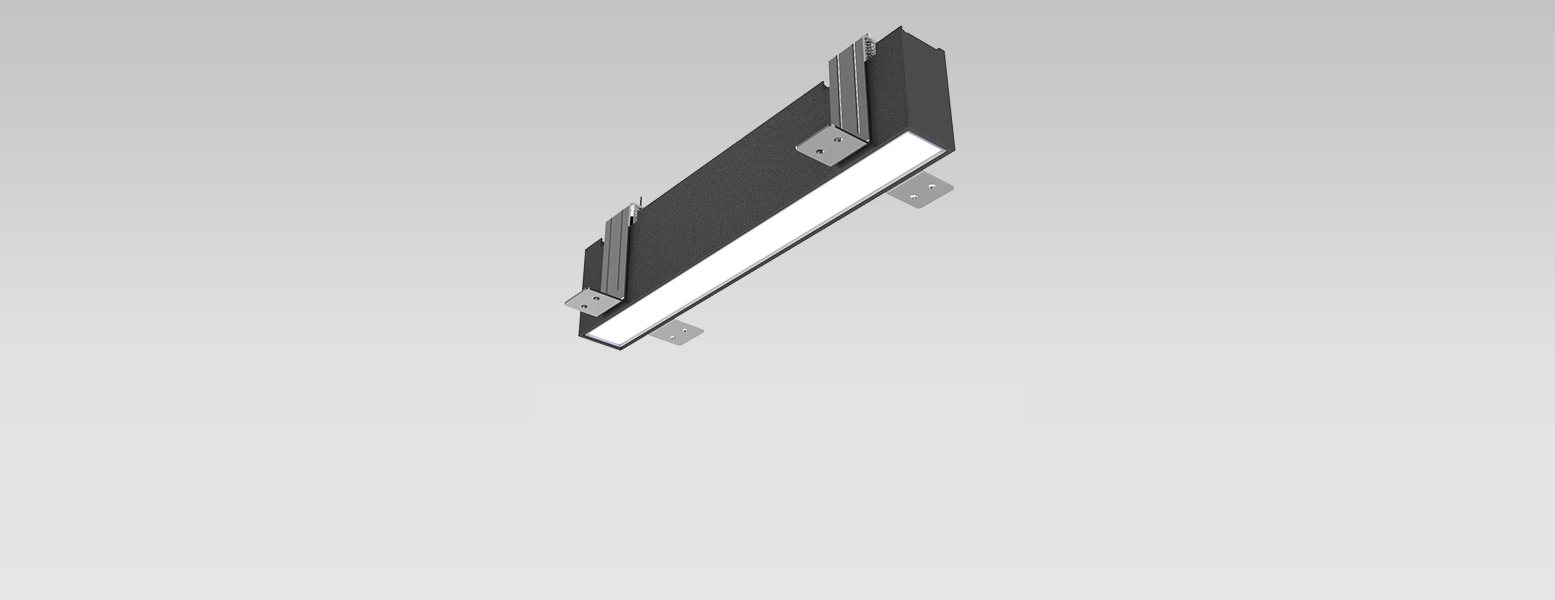

SD3-L328B/L646B/L964B

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
Current:	350mA
Rated life:	>50,000 hours
Operating temperature:	-20℃~40℃
Storage temperature:	-30℃~60℃
Certificate:	CE/RoHS
Dimmability:	Dimmable Optional
Weight:	0.8KG(L328B) 1.4KG(L646B) 2.0KG(L964B)

Packaging
information

System
overview

length	Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
328mm	15W	>80	90°	1100 lm	2700K		SD3-L328B-15W-827-W-90
				1100 lm	2700K		SD3-L328B-15W-827-B-90
				1150lm	3000K		SD3-L328B-15W-830-W-90
				1150lm	3000K		SD3-L328B-15W-830-B-90
				1200 lm	4000K		SD3-L328B-15W-840-W-90
				1200 lm	4000K		SD3-L328B-15W-840-B-90
646mm	30W	>80	90°	2200 lm	2700K		SD3-L646B-30W-827-W-90
				2200 lm	2700K		SD3-L646B-30W-827-B-90
				2235 lm	3000K		SD3-L646B-30W-830-W-90
				2235 lm	3000K		SD3-L646B-30W-830-B-90
				2230 lm	4000K		SD3-L646B-30W-840-W-90
				2230 lm	4000K		SD3-L646B-30W-840-B-90
964mm	40W	>80	90°	3050lm	2700K		SD3-L964B-40W-840-W-90
				3050lm	2700K		SD3-L964B-40W-840-B-90
				3100 lm	4000K		SD3-L964B-40W-840-W-90
				3100 lm	4000K		SD3-L964B-40W-840-B-90
				3150 lm	3000K		SD3-L964B-40W-840-W-90
				3150 lm	3000K		SD3-L964B-40W-840-B-90
