DP090R-14W
Recessed

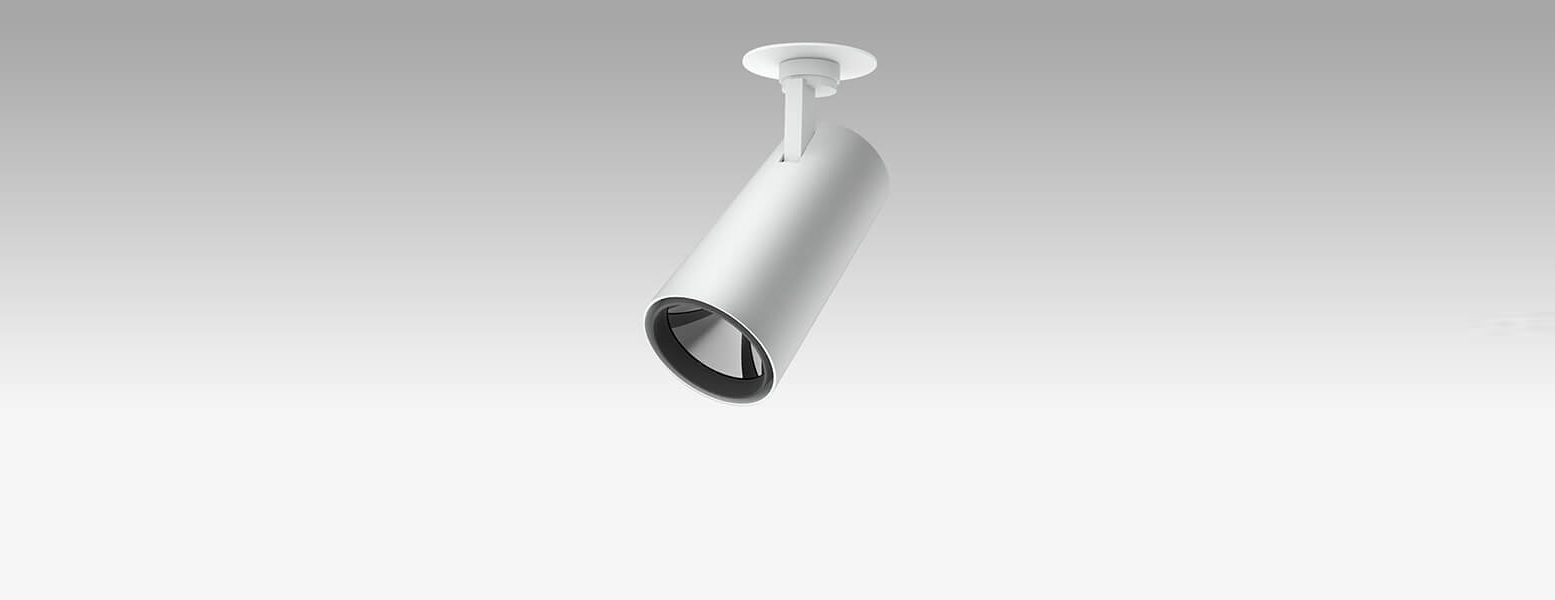

Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Light source: | COB |
Input Voltage: | AC220~240V 50/60Hz |
Current: | 500mA (35-37V) |
Rated life: | > 35,000 hours |
Operating temperature: | -20℃~40℃ |
Storage temperature: | -30℃~60℃ |
Certificate: | TUV/CE/RoHS |
Dimmability: | Dimmable Optional |
Weight: | 0.85KG |
Master carton dimensions(mm): | L670*W405*H325mm(Outer carton ) |
Quantity per carton(PCS): |
1pc/box 15 pcs/CTN |
G.W. Carton (Kg): |
1kg/box 27kg/carton |
Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
20W | >80 | 12° | 1940 lm | 3000K | RL051-20W-830-W-12 | |
RL051-20W-830-B-12 | ||||||
1970 lm | 4000K | RL051-20W-840-W-12 | ||||
RL051-20W-840-B-12 | ||||||
24° | 1830 lm | 3000K | RL051-20W-830-W-24 | |||
RL051-20W-830-B-24 | ||||||
1850 lm | 4000K | RL051-20W-840-W-24 | ||||
RL051-20W-840-B-24 | ||||||
36° | 1860 lm | 3000K | RL051-20W-830-W-36 | |||
RL051-20W-830-B-36 | ||||||
1880 lm | 4000K | RL051-20W-840-W-36 | ||||
RL051-20W-840-B-36 | ||||||
>90 | 12° | 1640 lm | 3000K | RL051-20W-930-W-12 | ||
RL051-20W-930-B-12 | ||||||
1770 lm | 4000K | RL051-20W-940-W-12 | ||||
RL051-20W-940-B-12 | ||||||
24° | 1550 lm | 3000K | RL051-20W-930-W-24 | |||
RL051-20W-930-B-24 | ||||||
1660 lm | 4000K | RL051-20W-940-W-24 | ||||
RL051-20W-940-B-24 | ||||||
36° | 1660 lm | 3000K | RL051-20W-930-W-36 | |||
RL051-20W-930-B-36 | ||||||
1690 lm | 4000K | RL051-20W-940-W-36 | ||||
RL051-20W-940-B-36 |
Need more informations? Contact us
