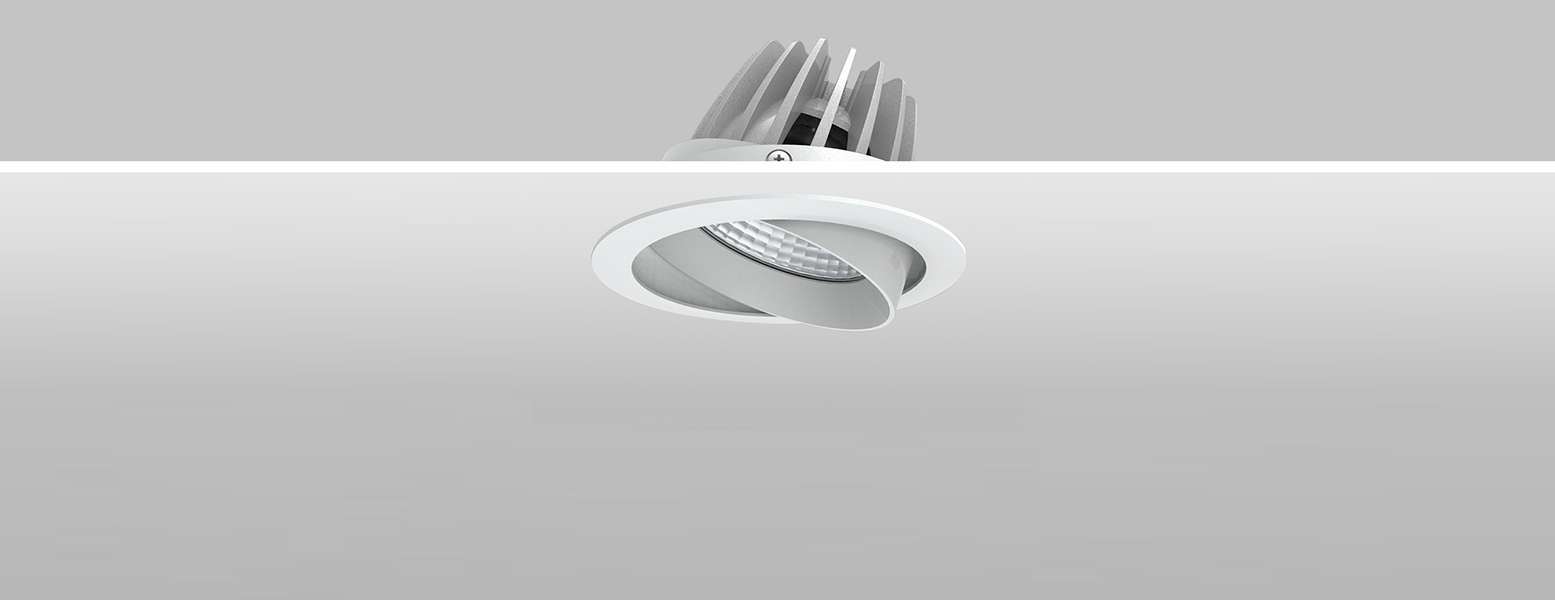

DL150-28W

This family is featured with interchangeable light engine system. 2 light engines of different size can be changed in between more than 20 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The IMS family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere - LED Modules and Light Engines.

Product
information

Name Parameters
Light source: COB
Input Voltage: AC220~240V  50/60Hz
Current: (Adjustable) 500mA 700mA
  20W 28W
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate:
Dimmability: Dimmable Optional

Packaging
information

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
28W >80 15° 3064 lm 3000K   IMS-DL150-28W-830-S-15
3254 lm 4000K   IMS-DL150-28W-840-S-15
24° 3013 lm 3000K   IMS-DL150-28W-830-S-24
3213lm 4000K   IMS-DL150-28W-840-S-24
40° 3046 lm 3000K   IMSDL150-28W-830-S-40
3193 lm 4000K   IMS-DL150-28W-840-S-40
>90 15° 2766lm 3000K   IMS-DL150-28W-930-S-15
24° 2726 lm 3000K   IMS-DL150-28W-930-S-24
40° 2763 lm 3000K   IMS-DL150-28W-930-S-40

Size
