Products

DP125S-24W

Product
information

Product number：	DP125S - 24W
Track System:	220-240V~
Dimming:	On/Off，TRIAC，1-10V，DALI
Light source:	COB LED
luminaire Lifetime：	50.000h（L80B50, Ta25°C）
IP Rating:	54
Working Temperature (°C)	-5 ~ +30
Material:	Aluminium
Fitting Colors:	Sandy White / Sandy Black

Packaging
information

N.W. lamp (Kg):	0.73
G.W. Carton (Kg):	15.6
Master carton dimensions(mm):	475x370x365
Quantity per carton:	20

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
18	24W	90	1958 lm	4000K	DP125S-24G40-S01
			1901 lm	3000K	DP125S-24G30-S01
			1805 lm	2700K	DP125S-24G27-S01
24	24W	90	2030 lm	4000K	DP125S-24G40-M01
			1971 lm	3000K	DP125S-24G30-M01
			1872 lm	2700K	DP125S-24G27-M01
38	24W	90	2087 lm	4000K	DP125S-24G40-F01
			2027 lm	3000K	DP125S-24G30-F01
			1925 lm	2700K	DP125S-24G27-F01
56	24W	90	2070 lm	4000K	DP125S-24G40-WF01
			2010 lm	3000K	DP125S-24G30-WF01
			1909 lm	2700K	DP125S-24G27-WF01

Downloads

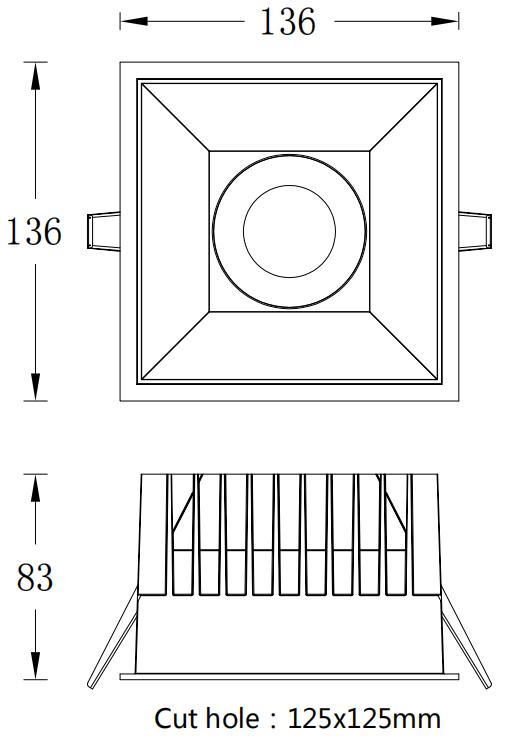

Size

DP125S - 24W

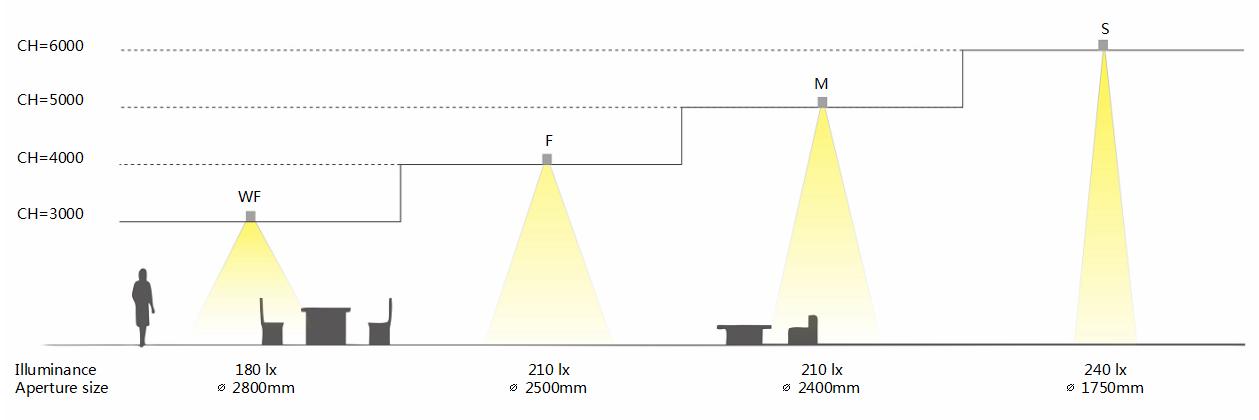

Illuminance

DP125S - 24W
