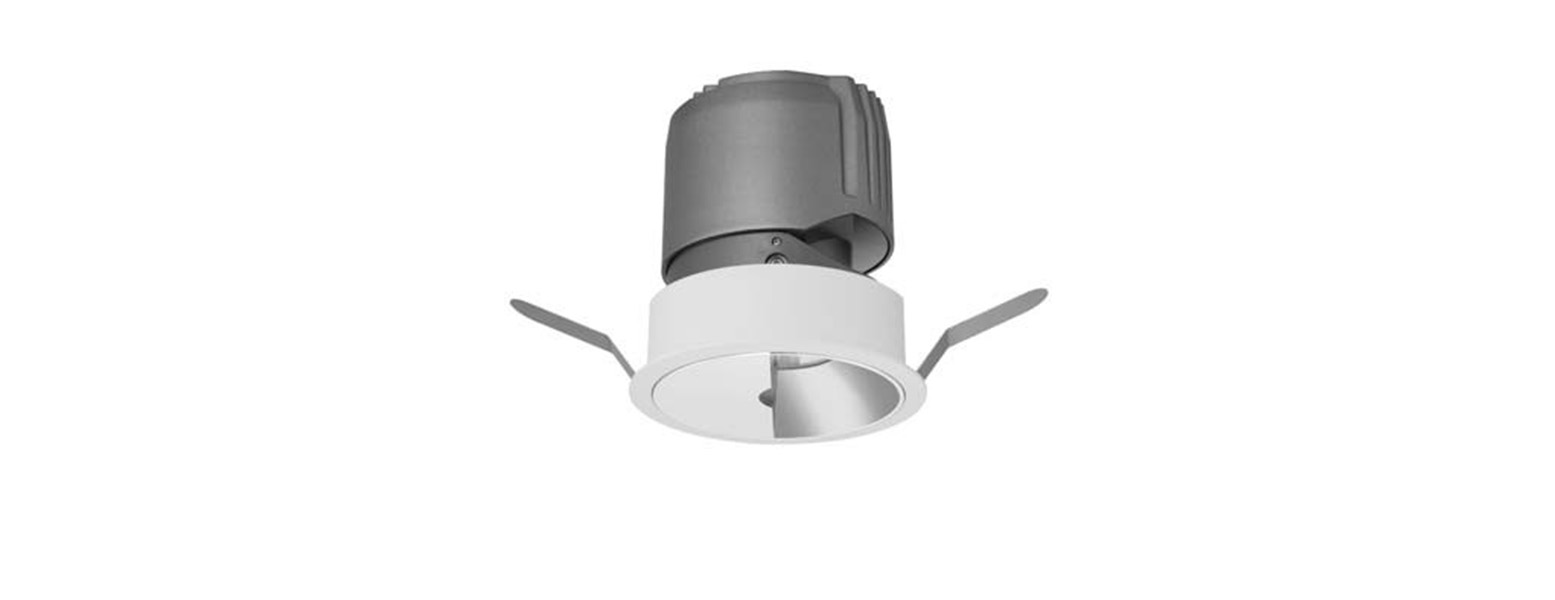

REG2075WR-11W

This glare-free fixture family allows architects and designers to work with different lighting applications. Thanks to precise engineering, the use of superior reflector materials and various glare control accessories, the EDGE II fixtures guarantee maximum visual comfort and optimal optic performance. The miniature design with clean sightlines make people focus on the light instead of the luminaire.

Product
information

Product number REG2075W - 11W
Input Voltage (v) 220-240V
Dimming On/Off,TRIAC,1-10V,DALI
Light source COB LED
luminaire Lifetime 50.000h(L80-B10, Ta25°C)
Rotation Angle (degree) 350
Tilting Angle (degree) N/A
IP Rating 20
Working Temperature (°C) -5 ~ +30
Storage Temperature (°C) -20 ~ +50
Material Aluminium
Fitting Colors 9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg) 0.37
G.W. Carton (Kg) 18
Master carton dimensions(mm) 678x670x277
Quantity per carton(PCS) 40

System
overview

Beam Watt CRI Luminous CCT Code
W10-S 11W 90 407.5 4000K REG2075WS-11G40
391.0 3000K REG2075WS-11G30
367.5 2700K REG2075WS-11G27
W10-M 11W 90 561.0 4000K REG2075WM-11G40
485.2 3000K REG2075WM-11G30
456.0 2700K REG2075WM-11G27
W10-F 11W 90 467.5 4000K REG2075WF-11G40
451.2 3000K REG2075WF-11G30
424.1 2700K REG2075WF-11G27

Size
