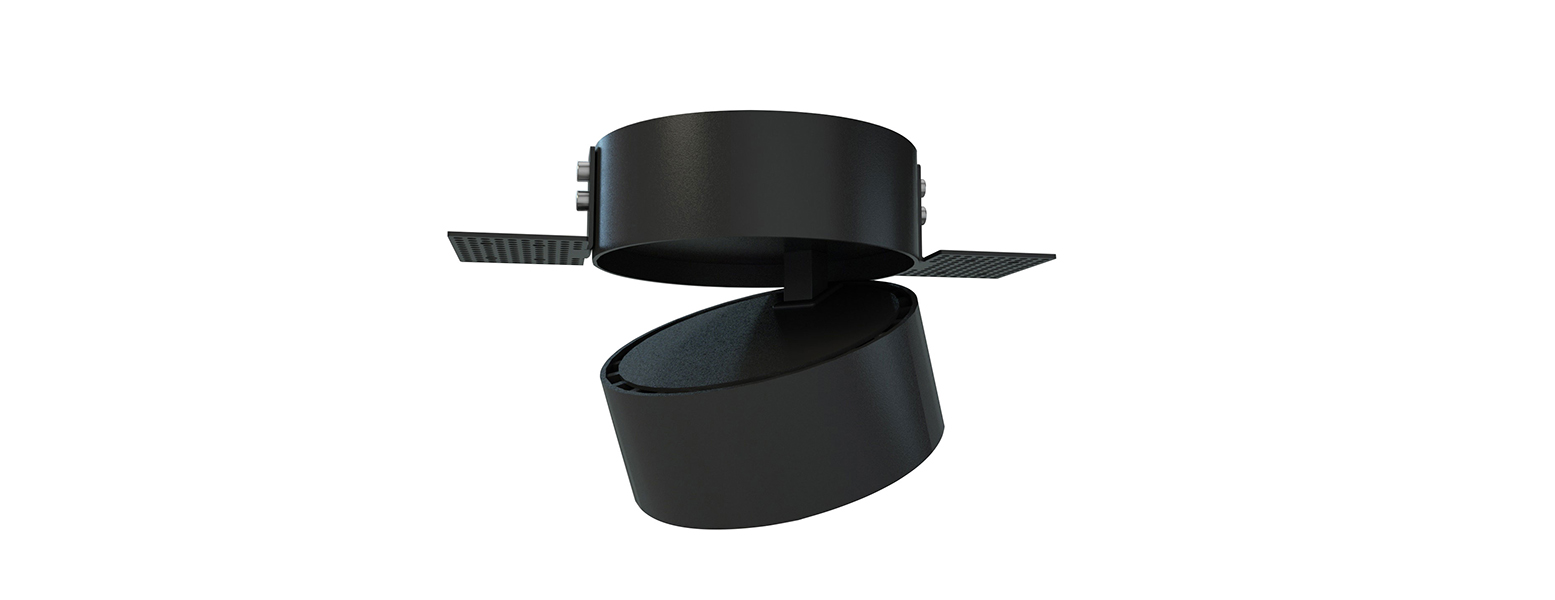

DL32-M-20W

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	500mA, 35-37V
Beam Angle：	15°/20°/36°/48°/60°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	0.60kg

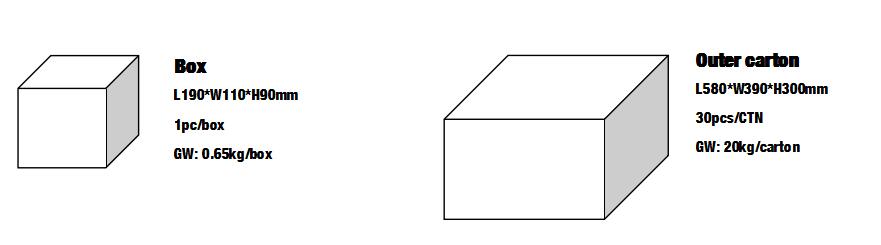

Packaging
information

System
overview

White

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
20W	>80	15°	1910 lm	3000K		DL321-20W-830-W-15-M
		15°	2100 lm	4000K		DL321-20W-840-W-15-M
		20°	1778 lm	3000K		DL321-20W-830-W-20-M
		20°	1962 lm	4000K		DL321-20W-840-W-20-M
		36°	1870 lm	3000K		DL321-20W-830-W-36-M
		36°	2086 lm	4000K		DL321-20W-840-W-48-M
		48°	2129 lm	3000K		DL321-20W-830-W-48-M
		48°	2307 lm	4000K		DL321-20W-840-W-60-M
		60°	2073 lm	3000K		DL321-20W-830-W-60-M
		60°	2278 lm	4000K		DL321-20W-840-W-36-M
	>90	15°	1566 lm	3000K		DL321-20W-930-W-15-M
		20°	1672 lm	3000K		DL321-20W-930-W-20-M
		36°	1647 lm	3000K		DL321-20W-930-W-36-M
		48°	1876 lm	3000K		DL321-20W-930-W-60-M
		60°	1810 lm	3000K		DL321-20W-930-W-60-M

Downloads

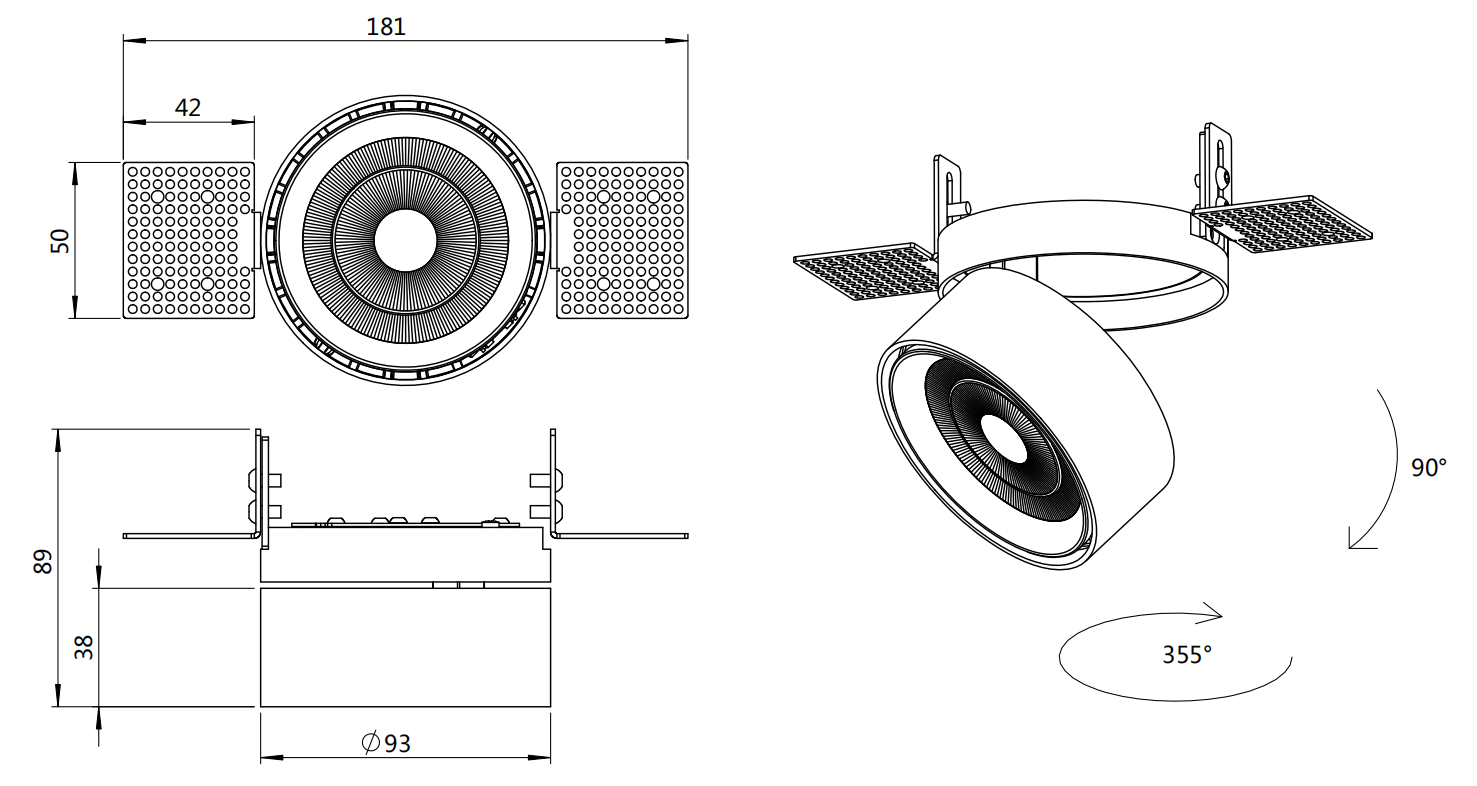

Size

Technical Data

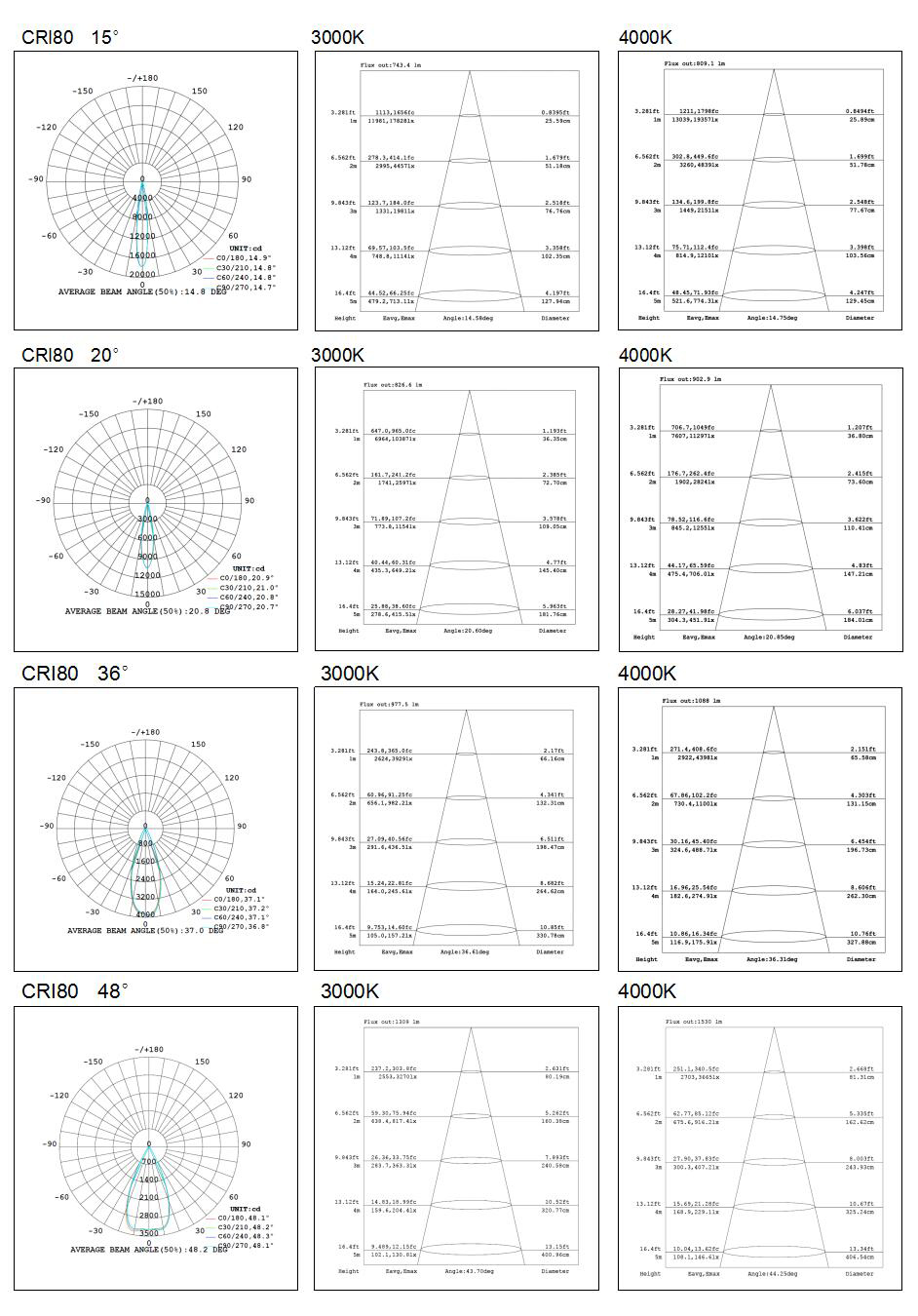

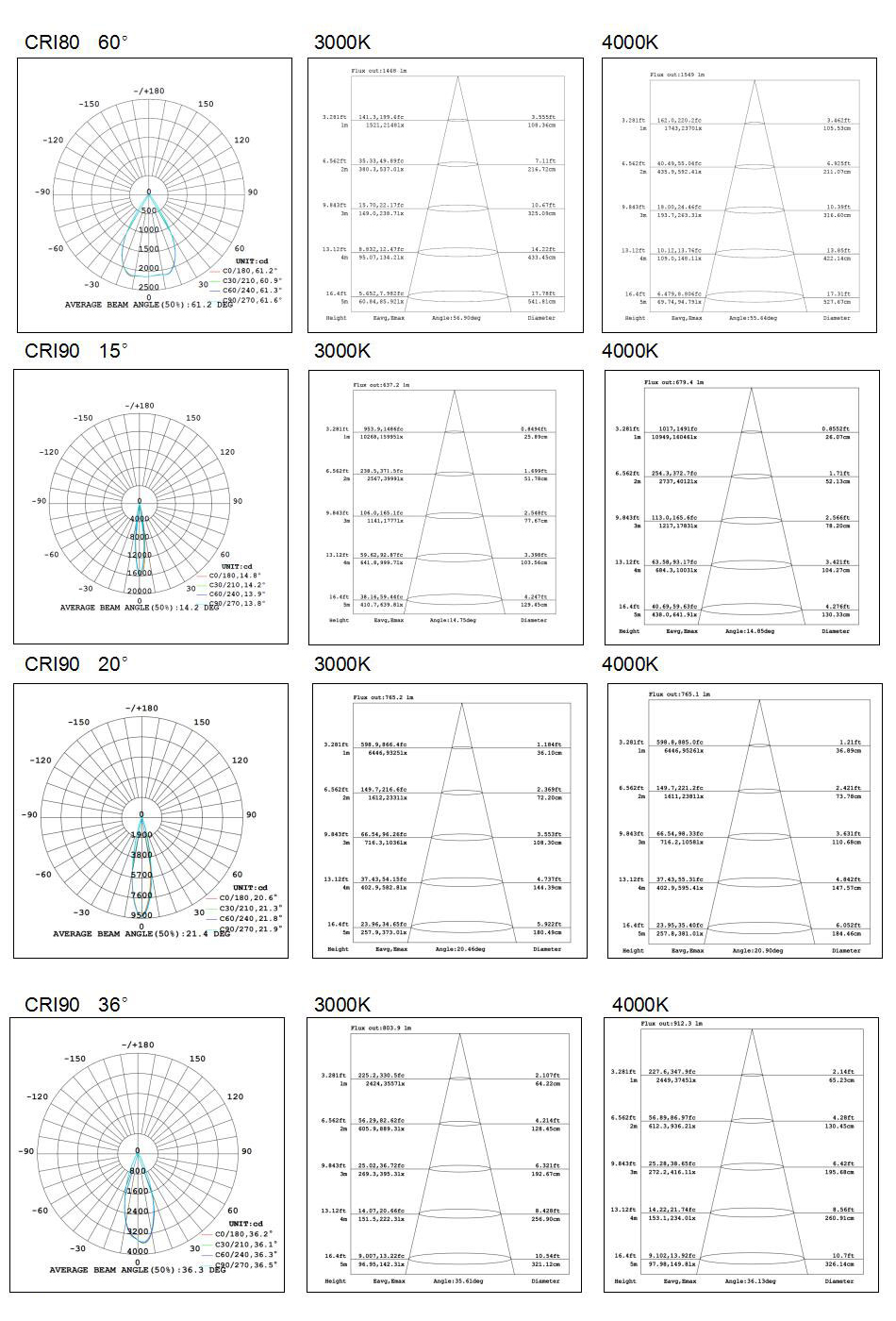

test pattern

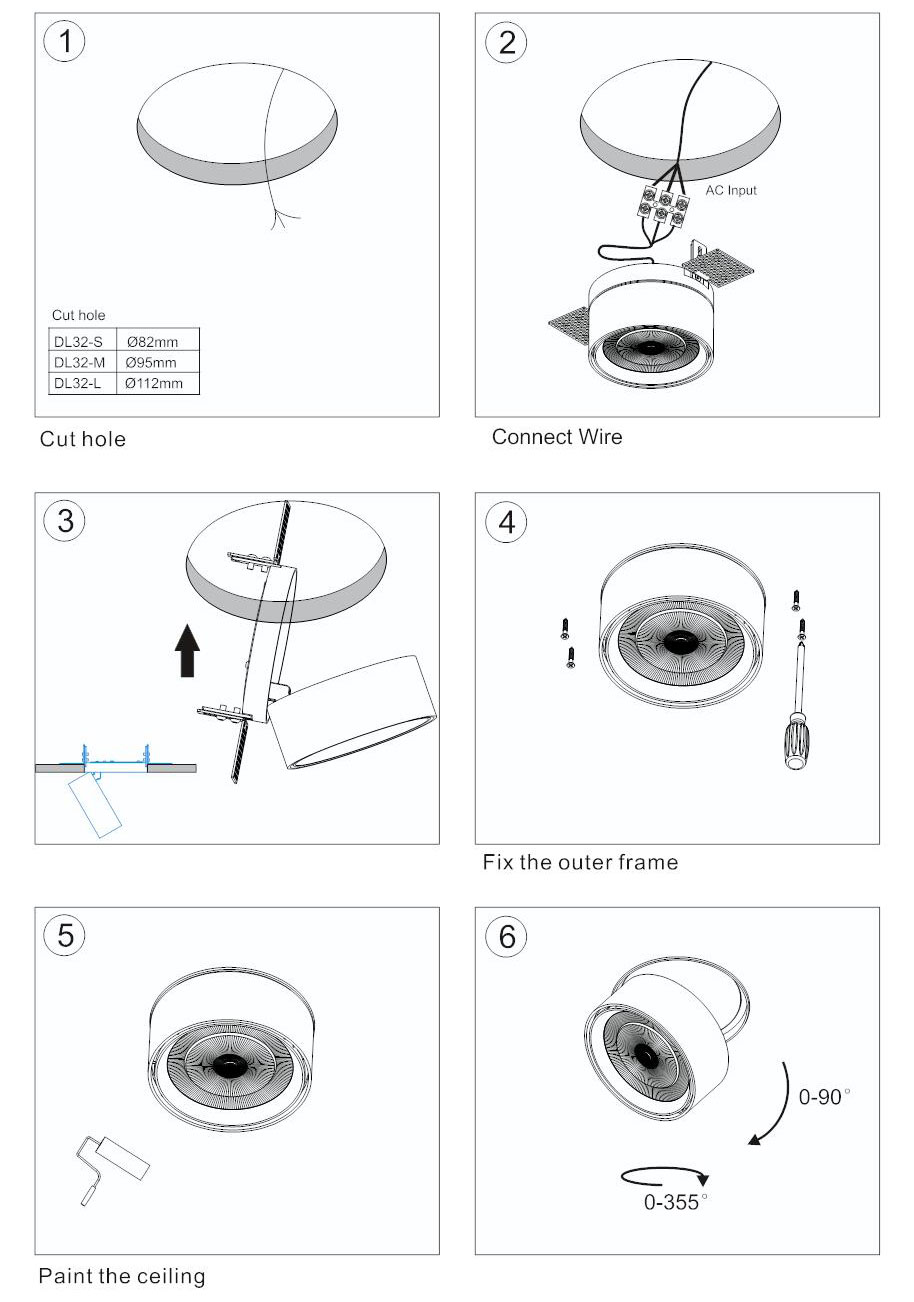

Installation
instruction
