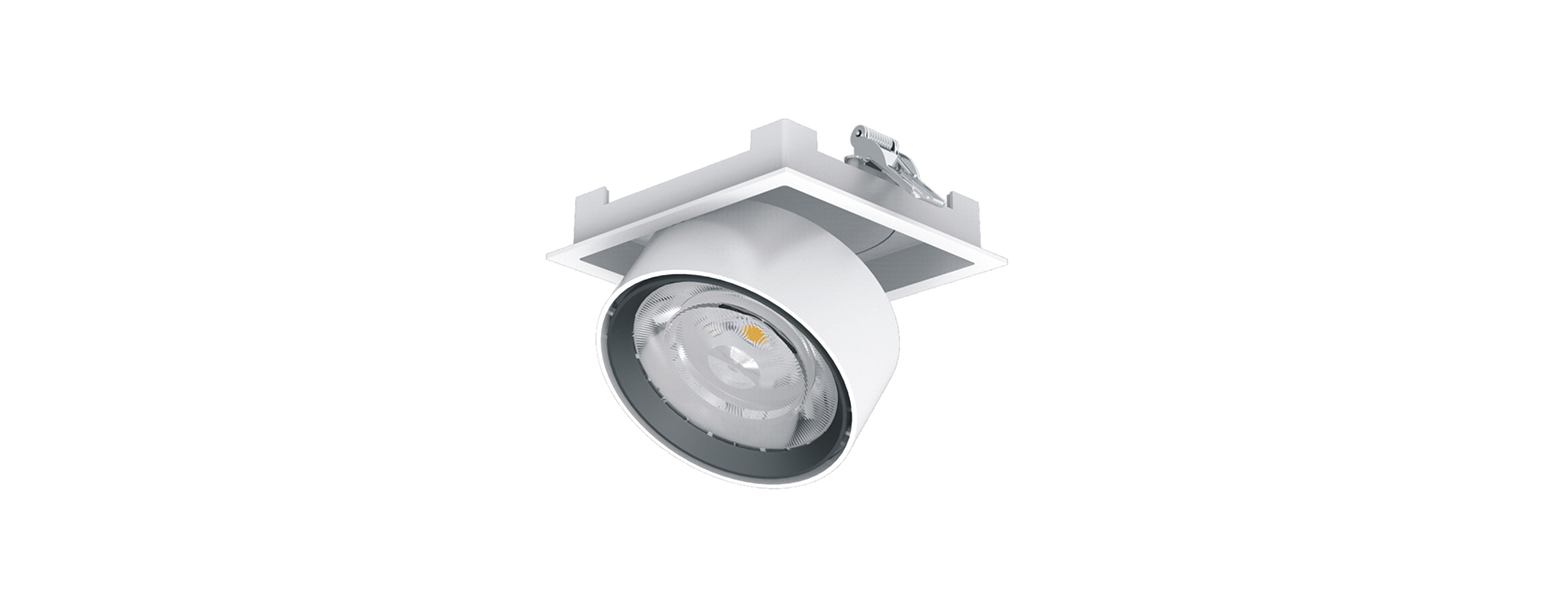

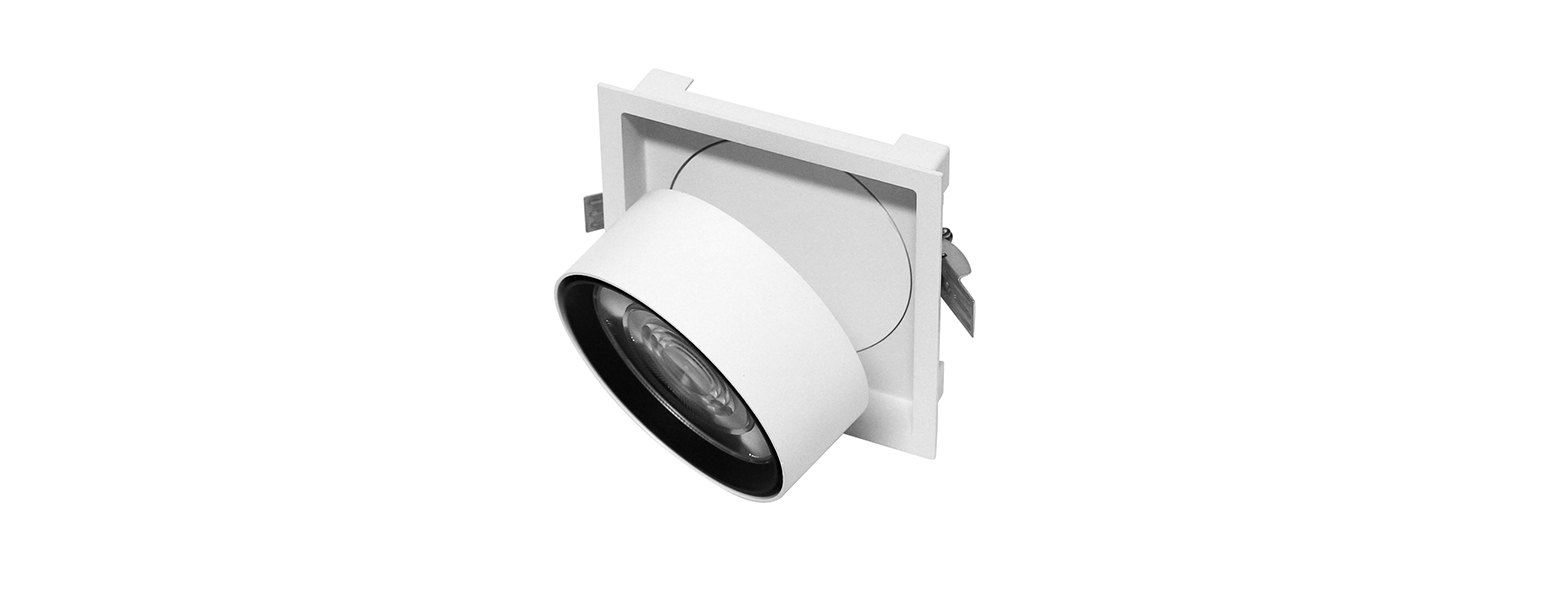

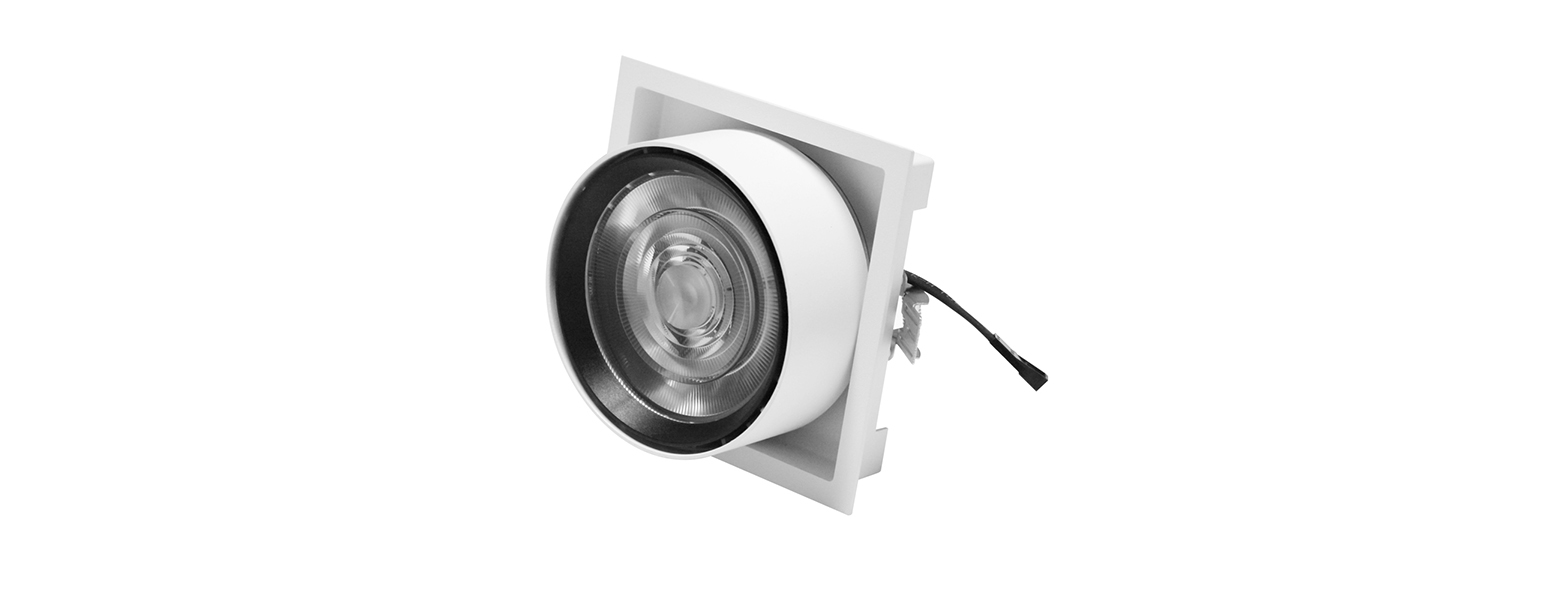

GL13-1X28W

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	700mA, 35-37V
Beam Angle：	12°/24°/36°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	0.6kg

Packaging
information

System
overview

White Black

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
28W	>80	12°	2825 lm	3000K		GL1311-28W-830-W-12
			2825 lm	3000K		GL1311-28W-830-B-12
			2897 lm	4000K		GL1311-28W-840-W-12
			2897 lm	4000K		GL1311-28W-840-B-12
		24°	2803 lm	3000K		GL1311-28W-830-W-24
			2803 lm	3000K		GL1311-28W-830-B-24
			2871 lm	4000K		GL1311-28W-840-W-24
			2871 lm	4000K		GL1311-28W-840-B-24
		36°	2876 lm	3000K		GL1311-28W-830-W-36
			2876 lm	3000K		GL1311-28W-830-B-36
			2942 lm	4000K		GL1311-28W-840-W-36
			2942 lm	4000K		GL1311-28W-840-B-36
	>90	12°	2165 lm	3000K		GL1311-28W-930-W-12
		12°	2165 lm	3000K		GL1311-28W-930-B-12
		24°	2159 lm	3000K		GL1311-28W-930-W-24
		24°	2159 lm	3000K		GL1311-28W-930-B-24
		36°	2217 lm	3000K		GL1311-28W-930-W-36
		36°	2217 lm	3000K		GL1311-28W-930-B-36

Downloads

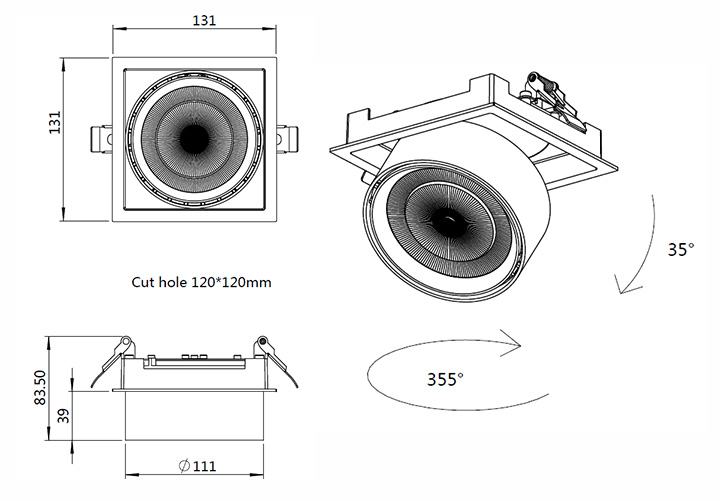

Size

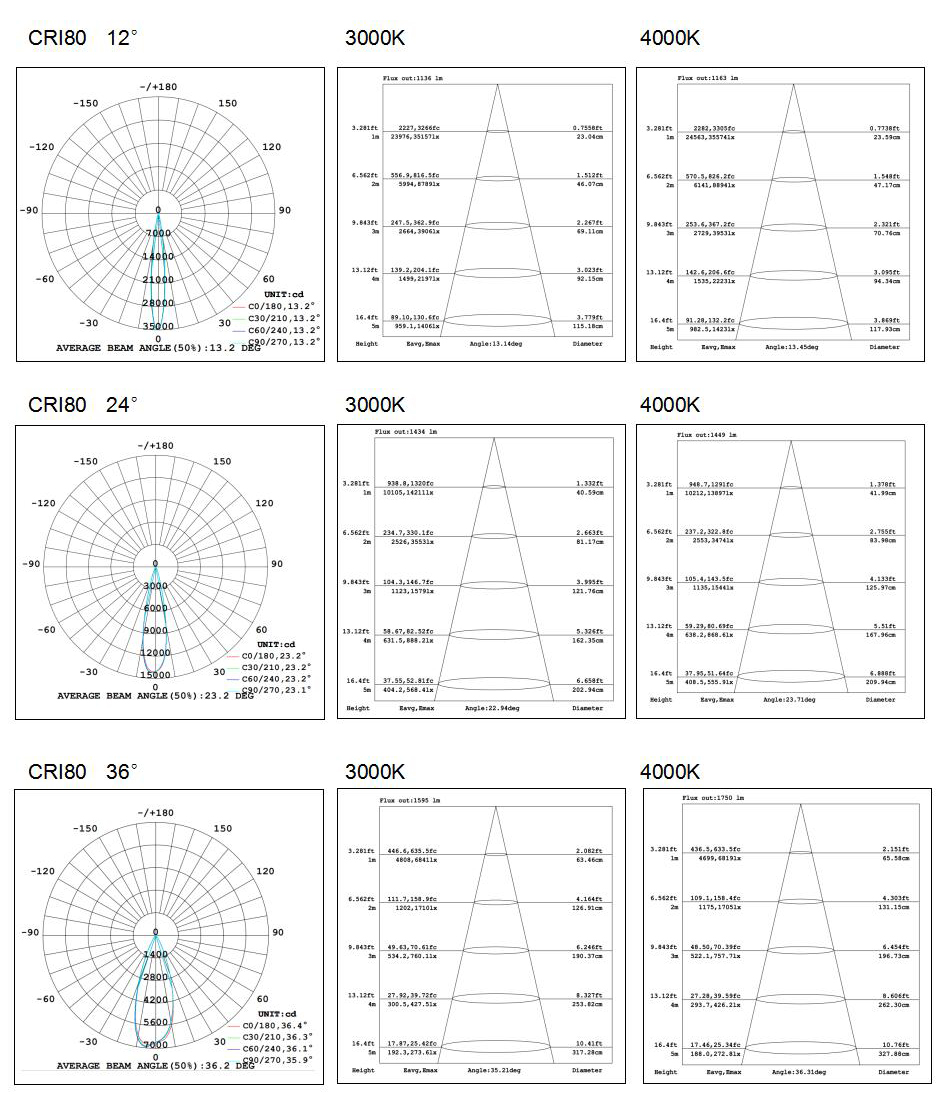

Technical Data
test pattern

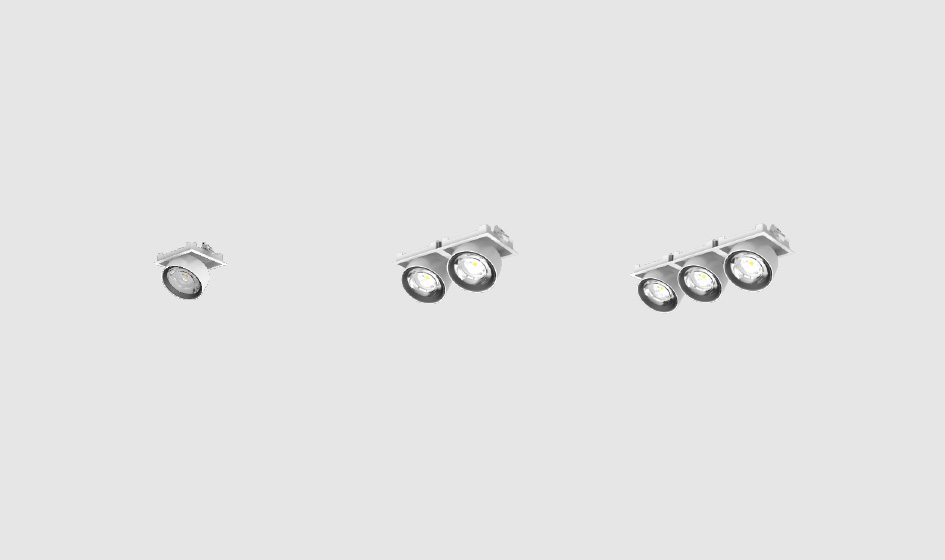

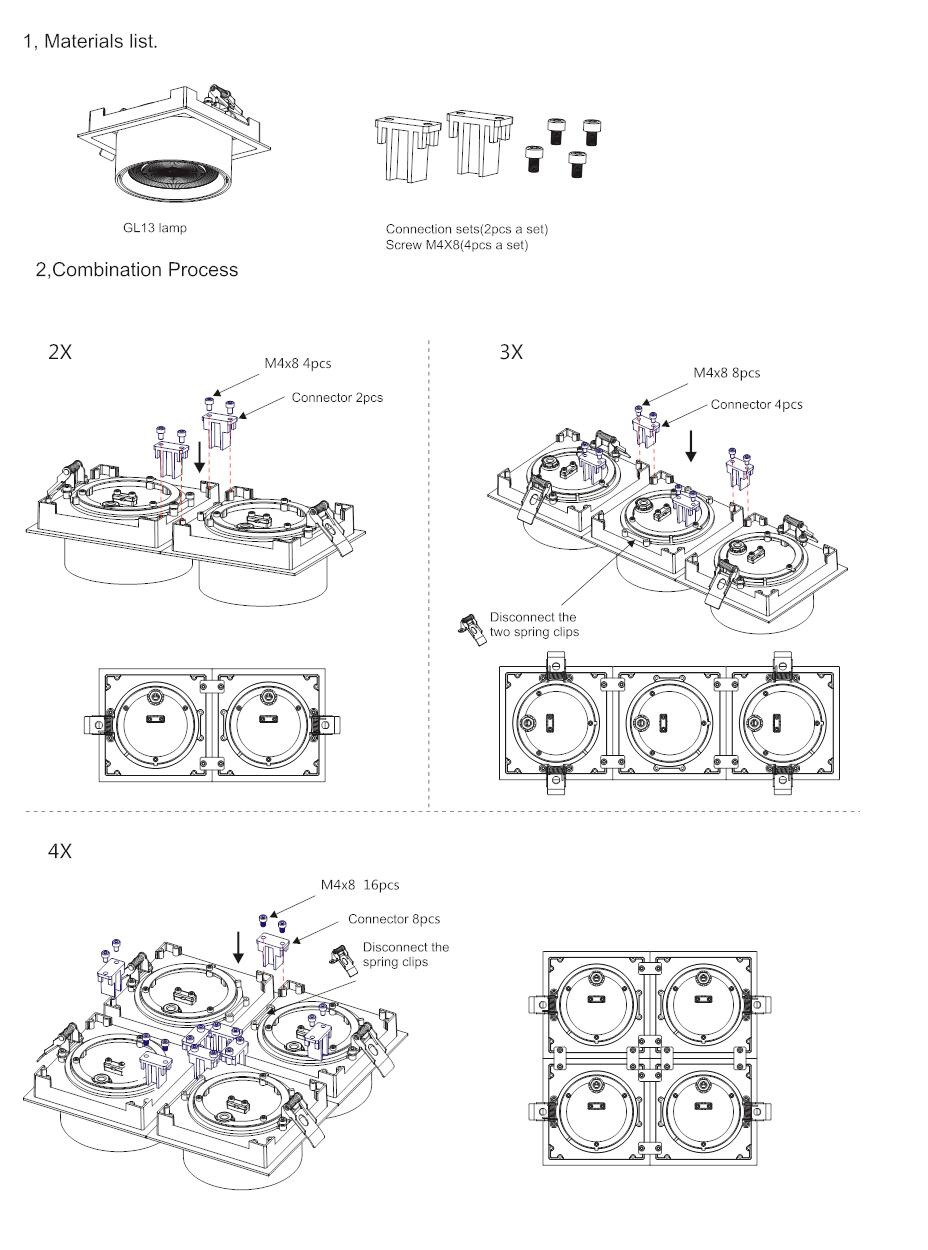

Combination Instructions
of GL13 Grille downlight

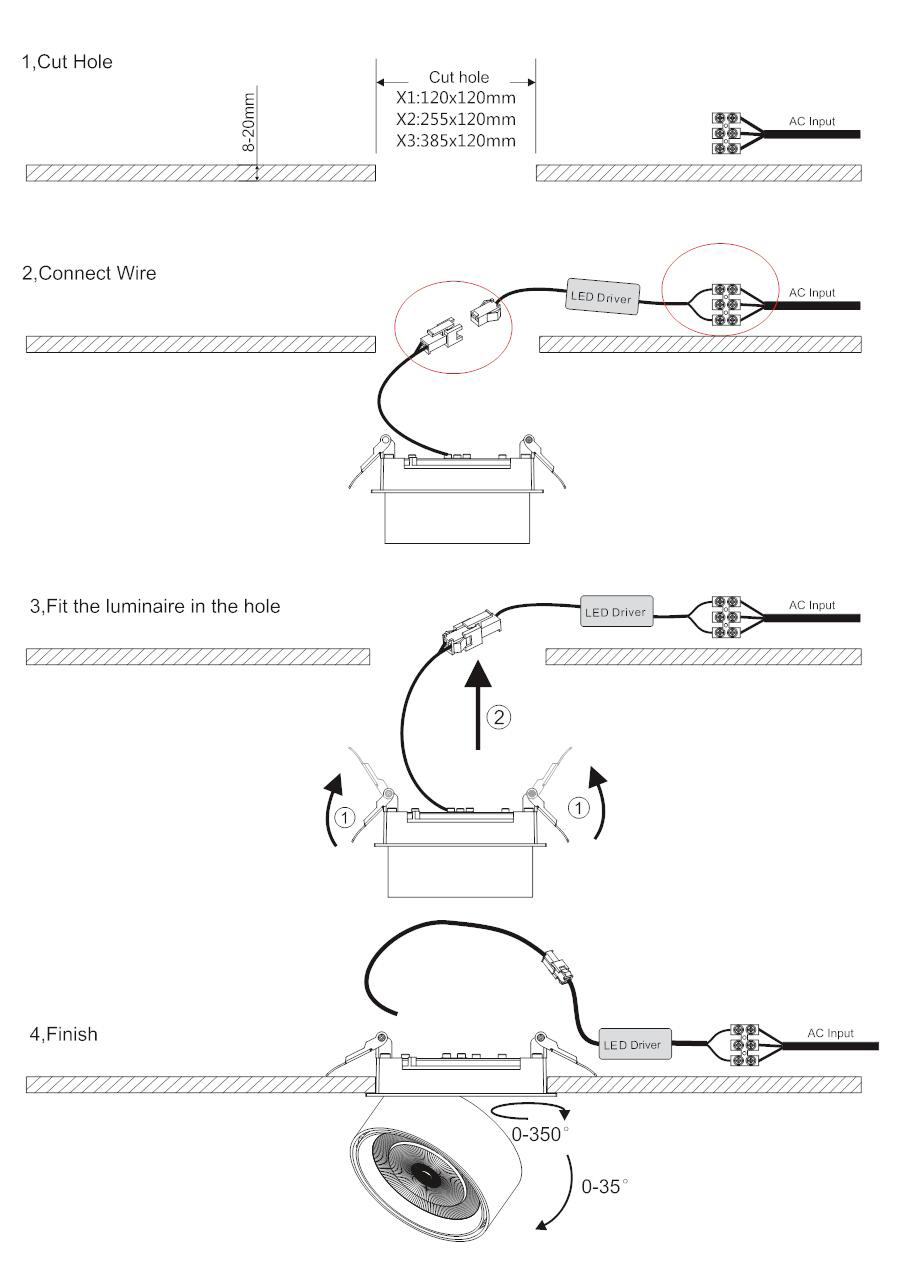

Installation
instruction
