DP090R-14W
Recessed
Products

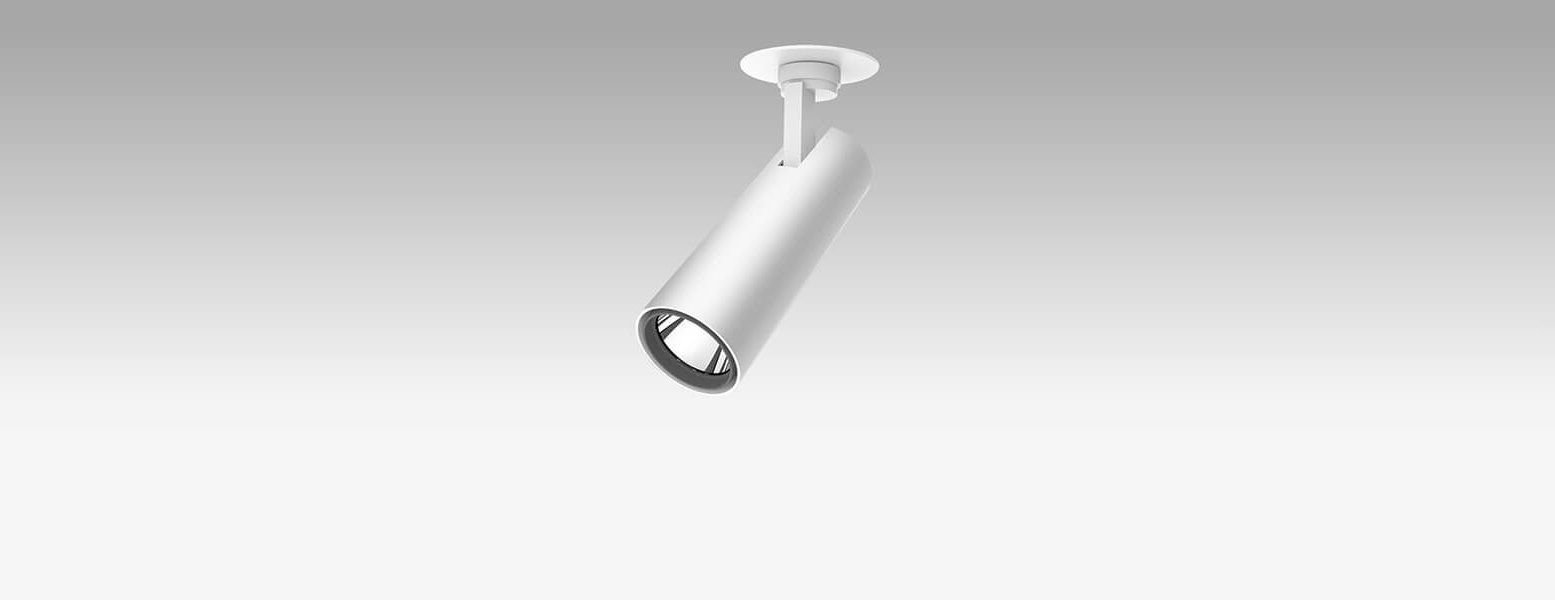

RL041-15W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA (35-37V) |
| Rated life: | > 35,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 0.5KG |
Packaging
information
| Master carton dimensions(mm)： | L515*W415*H305mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 20 pcs/CTN |
| G.W. Carton (Kg)： |
0.7kg/box 16kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 15W | >80 | 16° | 1280 lm | 3000K | RL041-15W-830-W-16 | |
| RL041-15W-830-B-16 | ||||||
| 1320 lm | 4000K | RL041-15W-840-W-16 | ||||
| RL041-15W-840-B-16 | ||||||
| 24° | 1260 lm | 3000K | RL041-15W-830-W-24 | |||
| RL041-15W-830-B-24 | ||||||
| 1310 lm | 4000K | RL041-15W-840-W-24 | ||||
| RL041-15W-840-B-24 | ||||||
| 38° | 1210 lm | 3000K | RL041-15W-830-W-38 | |||
| RL041-15W-830-B-38 | ||||||
| 1260 lm | 4000K | RL041-15W-840-W-38 | ||||
| RL041-15W-840-B-38 | ||||||
| 60° | 1230 lm | 3000K | RL041-15W-830-W-60 | |||
| RL041-15W-830-B-60 | ||||||
| 1270 lm | 4000K | RL041-15W-840-W-60 | ||||
| RL041-15W-840-B-60 | ||||||
| >90 | 16° | 1080 lm | 3000K | RL041-15W-930-W-16 | ||
| RL041-15W-930-B-16 | ||||||
| 1220 lm | 4000K | RL041-15W-940-W-16 | ||||
| RL041-15W-940-B-16 | ||||||
| 24° | 1080 lm | 3000K | RL041-15W-930-W-24 | |||
| RL041-15W-930-B-24 | ||||||
| 1210 lm | 4000K | RL041-15W-940-W-24 | ||||
| RL041-15W-940-B-24 | ||||||
| 38° | 1040 lm | 3000K | RL041-15W-930-W-38 | |||
| RL041-15W-930-B-38 | ||||||
| 1150 lm | 4000K | RL041-15W-940-W-38 | ||||
| RL041-15W-940-B-38 | ||||||
| 60° | 1070 lm | 3000K | RL041-15W-930-W-60 | |||
| RL041-15W-930-B-60 | ||||||
| 1180 lm | 4000K | RL041-15W-940-W-60 | ||||
| RL041-15W-940-B-60 |
Downloads

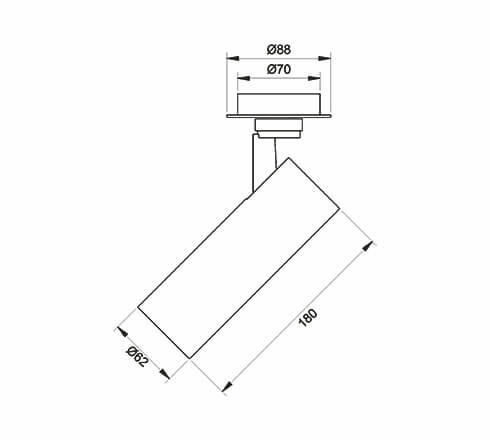

Size
Need more informations? Contact us
