Products

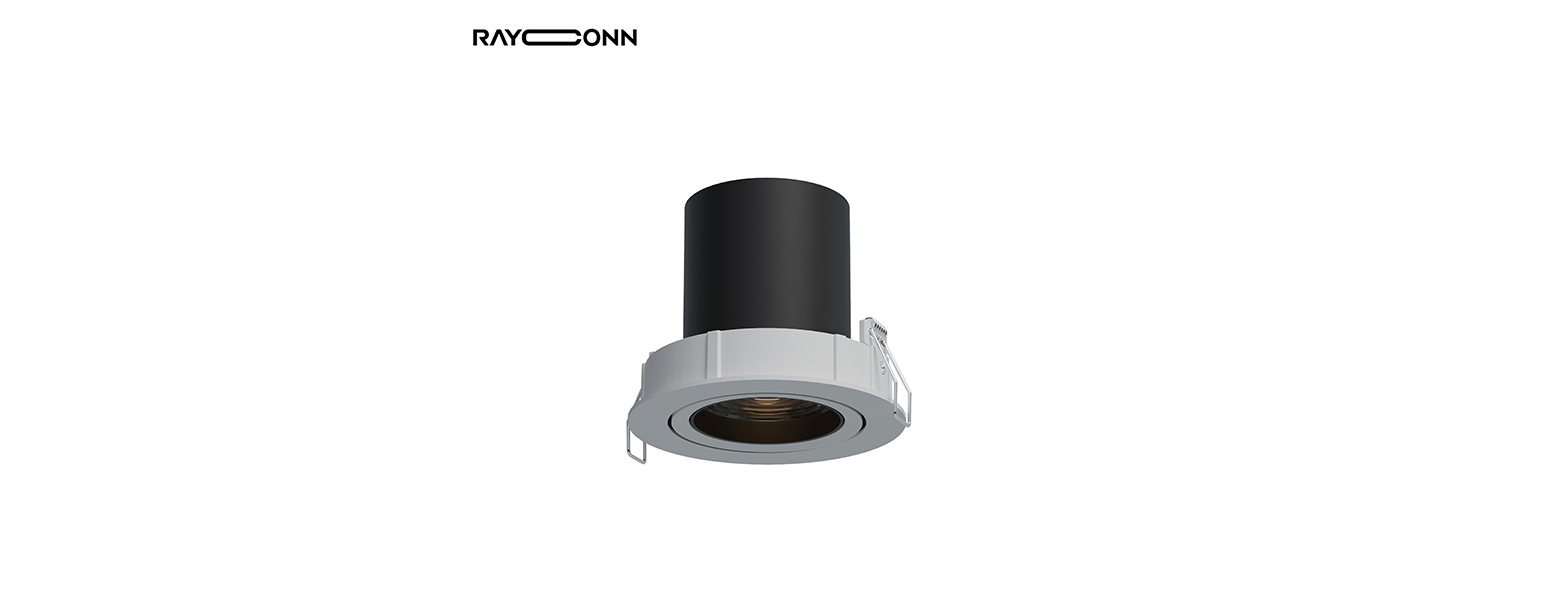

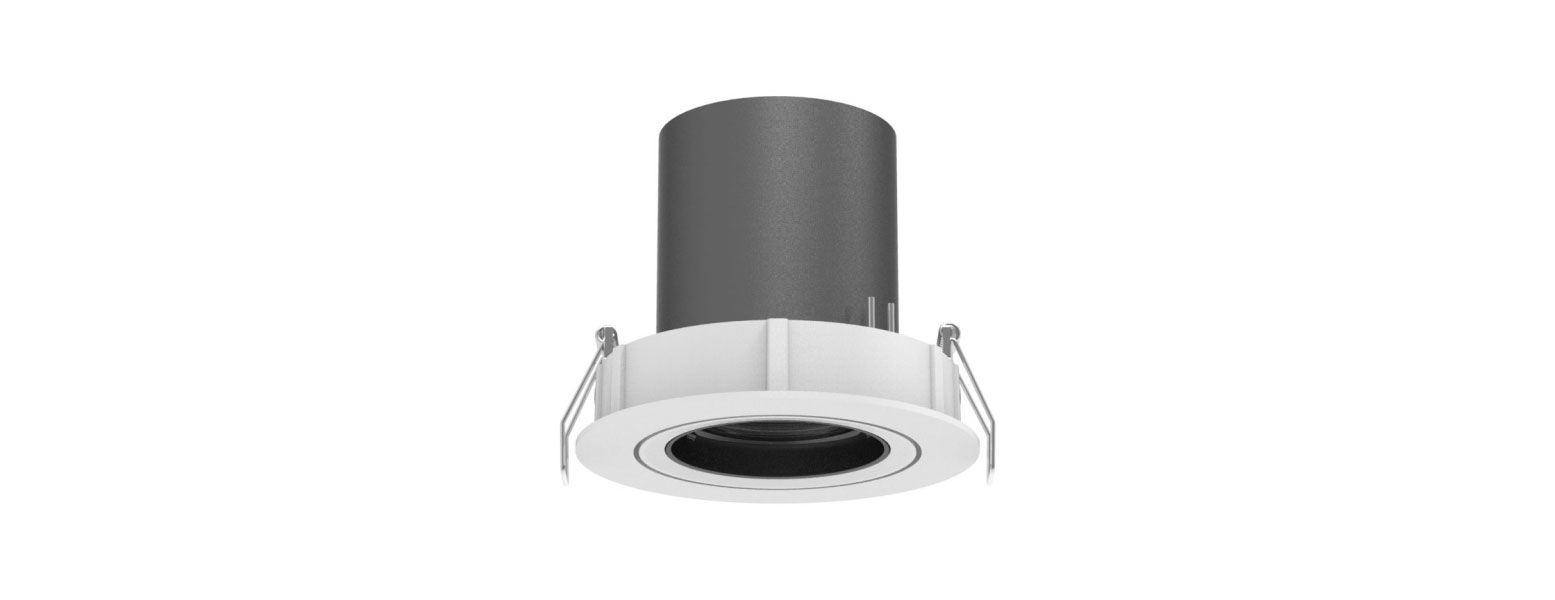

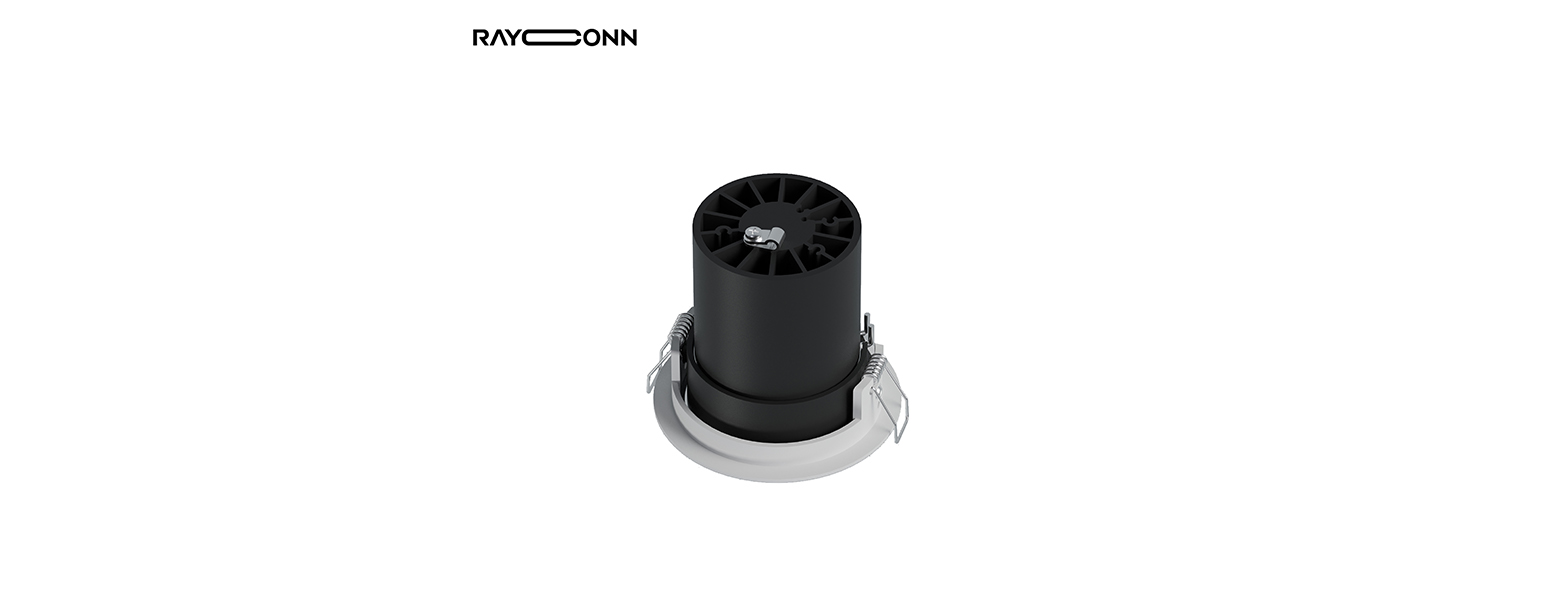

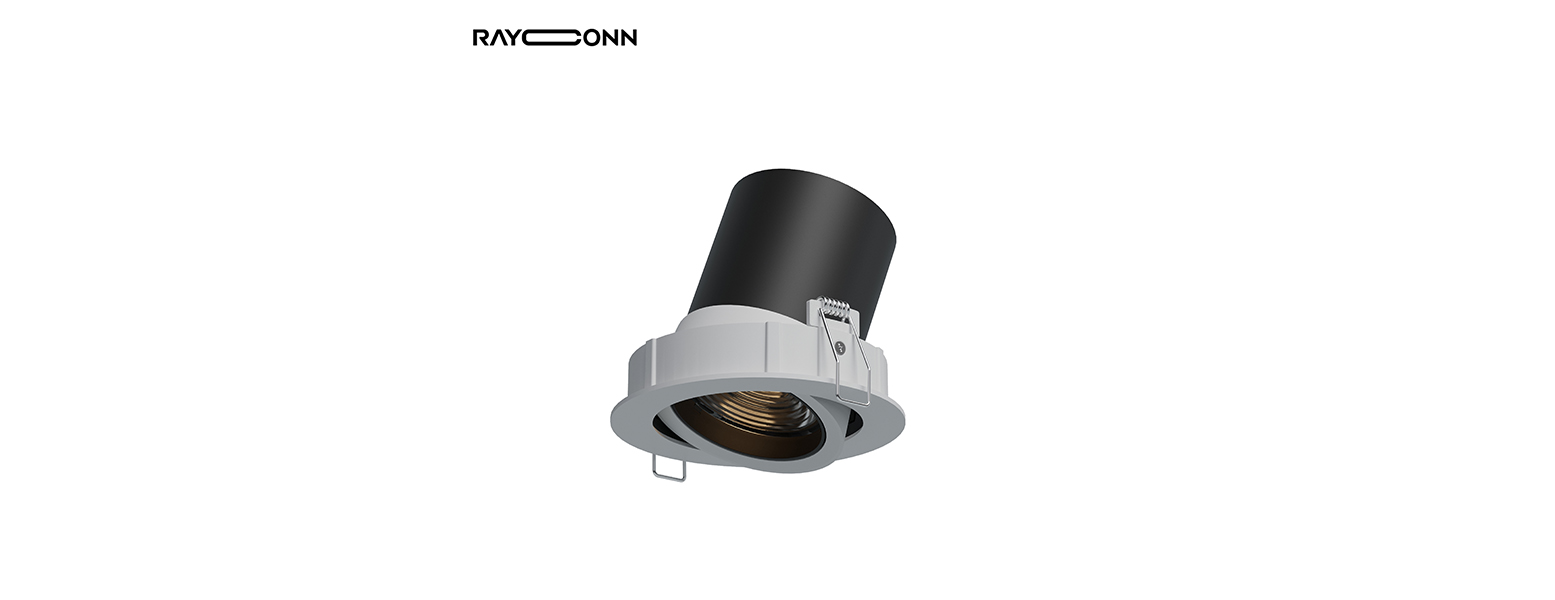

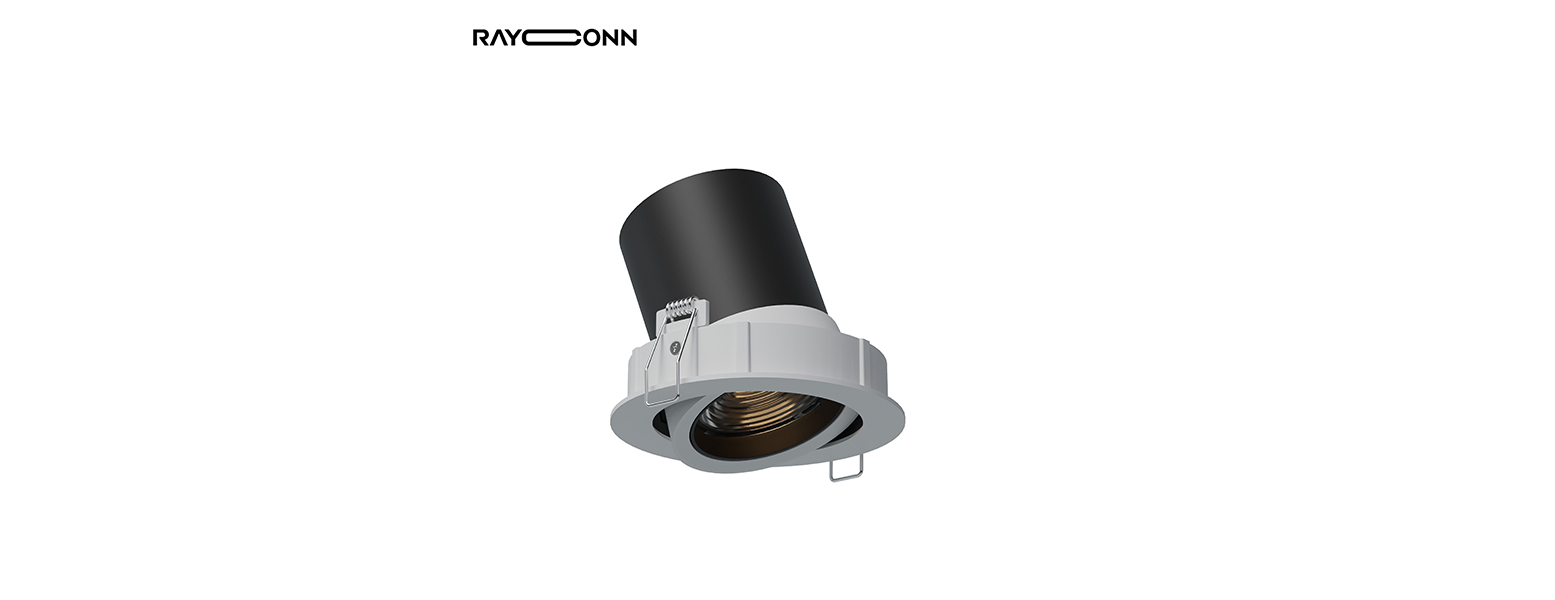

ALR70-24

Product
information

Product number	ALR70 - 24
Input Voltage (v):	220-240V AC
Dimming	On/Off，Triac，1-10V，DALI
Light source	COB LED
luminaire Lifetime	50.000h（L80-B10, Ta25°C）
Rotation Angle (degree)	355
Tilting Angle (degree)	30
IP Rating	20
Working Temperature (°C)	-5 ~ +30
Storage Temperature (°C)	-20 ~+50
Material	Aluminium
Fitting Colors	9016 Sandy White / 9017 Sandy Black

Packaging
information

N.W. lamp (Kg)	0.76
G.W. Carton (Kg)	18
Master carton dimensions(mm)	720x295x328
Quantity per carton(PCS)	20

System
overview

Beam	Watt	CRI	Luminous	CCT	Code
16	24W	90	2012.1 lm	4000K	ALR70S-NC24G40-S
			1898.2 lm	3000K	ALR70S-NC24G30-S
			1765.3 lm	2700K	ALR70S-NC24G27-S
21	24W	90	2028.8 lm	4000K	ALR70S-NC24G40-M
			1914.0 lm	3000K	ALR70S-NC24G30-M
			1780.0 lm	2700K	ALR70S-NC24G27-M
34	24W	90	1911.4 lm	4000K	ALR70S-NC24G40-F
			1803.2 lm	3000K	ALR70S-NC24G30-F
			1676.9 lm	2700K	ALR70S-NC24G27-F
45	24W	90	1926.9 lm	4000K	ALR70S-NC24G40-WF
			1817.8 lm	3000K	ALR70S-NC24G30-WF
			1690.6 lm	2700K	ALR70S-NC24G27-WF

Downloads

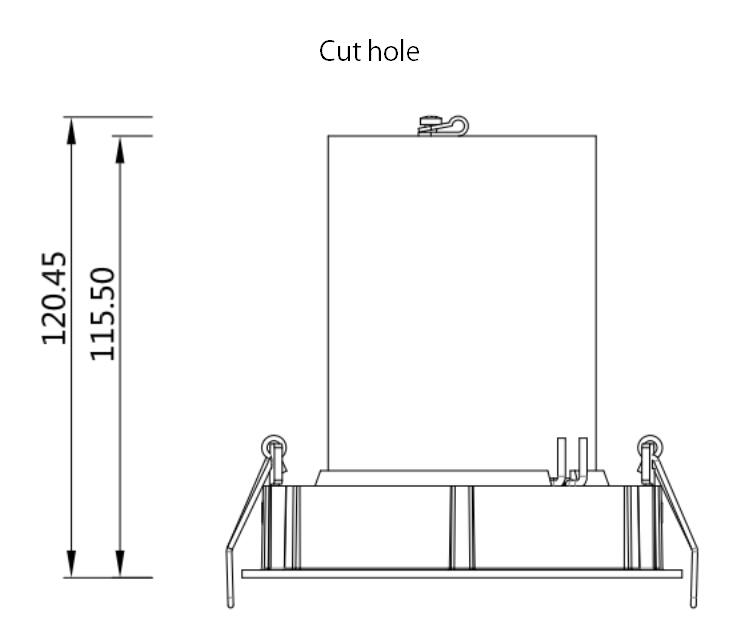

Size

ALR70 - 24
