DP090R-14W
Recessed
Products
GL02-28W
This family is featured with interchangeable light engine system. 2 light engines of different size can be changed in between more than 20 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The IMS family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere - LED Modules and Light Engines.
Product
information
| Name | Parameters | ||
| Light source: | COB | ||
| Input Voltage: | AC220~240V 50/60Hz | ||
| Current: (Adjustable) | 700mA | 700mA | 700mA |
| 1x28W | 2x28w | 3x28w | |
| Rated life: | >50,000 hours | ||
| Operating temperature: | -20℃~40℃ | ||
| Storage temperature: | -30℃~60℃ | ||
| Certificate: | |||
| Dimmability: | Dimmable Optional | ||
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 1x28W | 80 | 15° | 3064 lm | 3000K | IMS-GL0211-28W-830-S-15 | |
| 3254lm | 4000K | IMS-GL0211-28W-840-S-15 | ||||
| 24° | 3013 lm | 3000K | IMS-GL0211-28W-830-S-24 | |||
| 3213 lm | 4000K | IMS-GL0211-28W-840-S-24 | ||||
| 40° | 3046 lm | 3000K | IMS-GL0211-28W-830-S-40 | |||
| 3193 lm | 4000K | IMS-GL0211-28W-840-S-40 | ||||
| >90 | 15° | 2766 lm | 3000K | IMS-GL0211-28W-930-S-15 | ||
| 24° | 2726 lm | 3000K | IMS-GL0211-28W-930-S-24 | |||
| 40° | 2763 lm | 3000K | IMS-GL0211-28W-930-S-40 | |||
| 2x28W | >80 | 15° | 4900 lm | 3000K | IMS-GL0221-28W-830-S-15 | |
| 5205lm | 4000K | IMSGL0221-28W-840-S-15 | ||||
| 24° | 4820 lm | 3000K | IMS-GL0221-28W-830-S-24 | |||
| 5140 lm | 4000K | IMS-GL0221-28W-840-S-24 | ||||
| 40° | 4875 lm | 3000K | IMS-GL0221-28W-830-S-40 | |||
| 5110lm | 4000K | IMS-GL0221-28W-840-S-40 | ||||
| >90 | 15° | 4425 lm | 3000K | IMS-GL0221-28W-930-S-15 | ||
| 24° | 4360 lm | 3000K | IMS-GL0221-28W-930-S-24 | |||
| 40° | 4420 lm | 3000K | IMS-GL0221-28W-930-S-40 |
Downloads

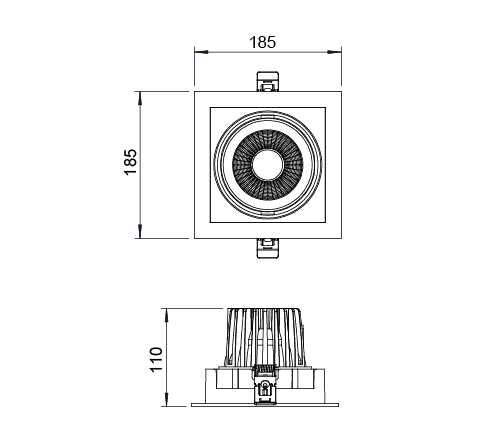

Size
Need more informations? Contact us
