GL13-2X28W

Product
information

Light source: COB
Input Voltage: AC220~240V  50/60Hz
LED Current: 700mA, 35-37V
Beam Angle: 12°/24°/36°
Life Time: > 50,000h - L80 - B10 (Ta 25°C)
Operating temperature: -20℃~40℃
Certificate: CE/RoHS
Weight: 1.15kg

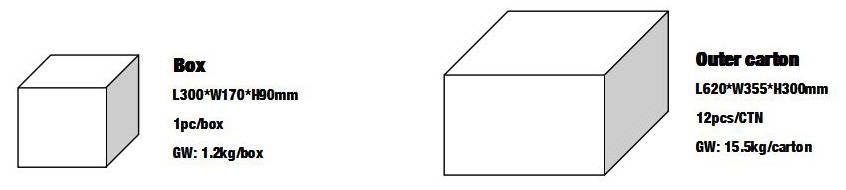

Packaging
information

System
overview

 White  Black
Power CRI Beam Angle Luminous CCT Housing Part Number
2x28W >80 12° 2X2825 lm 3000K   GL1321-2X28W-830-W-12
  GL1321-2X28W-830-B-12
2X2897 lm 4000K   GL1321-2X28W-840-W-12
  GL1321-2X28W-840-B-12
24° 2X2803 lm 3000K   GL1321-2X28W-830-W-24
  GL1321-2X28W-830-B-24
2X2871 lm 4000K   GL1321-2X28W-840-W-24
  GL1321-2X28W-840-B-24
36° 2X2876 lm 3000K   GL1321-2X28W-830-W-36
  GL1321-2X28W-830-B-36
2X2942 lm 4000K   GL1321-2X28W-840-W-36
  GL1321-2X28W-840-B-36
>90 12° 2X2165 lm 3000K   GL1321-2X28W-930-W-12
  GL1321-2X28W-930-B-12
24° 2X2159 lm 3000K   GL1321-2X28W-930-W-24
  GL1321-2X28W-930-B-24
36° 2X2217 lm 3000K   GL1321-2X28W-930-W-36
  GL1321-2X28W-930-B-36

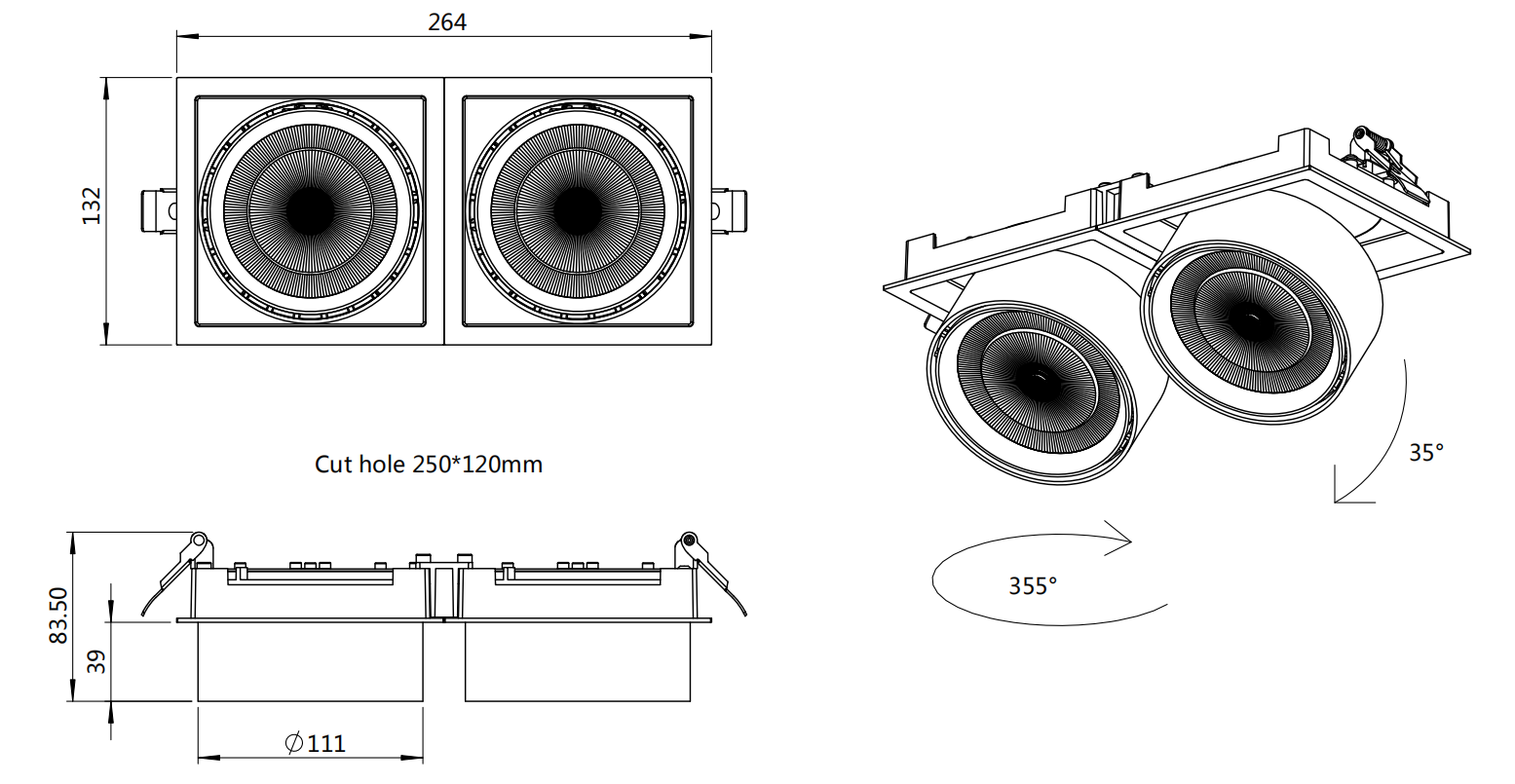

Size

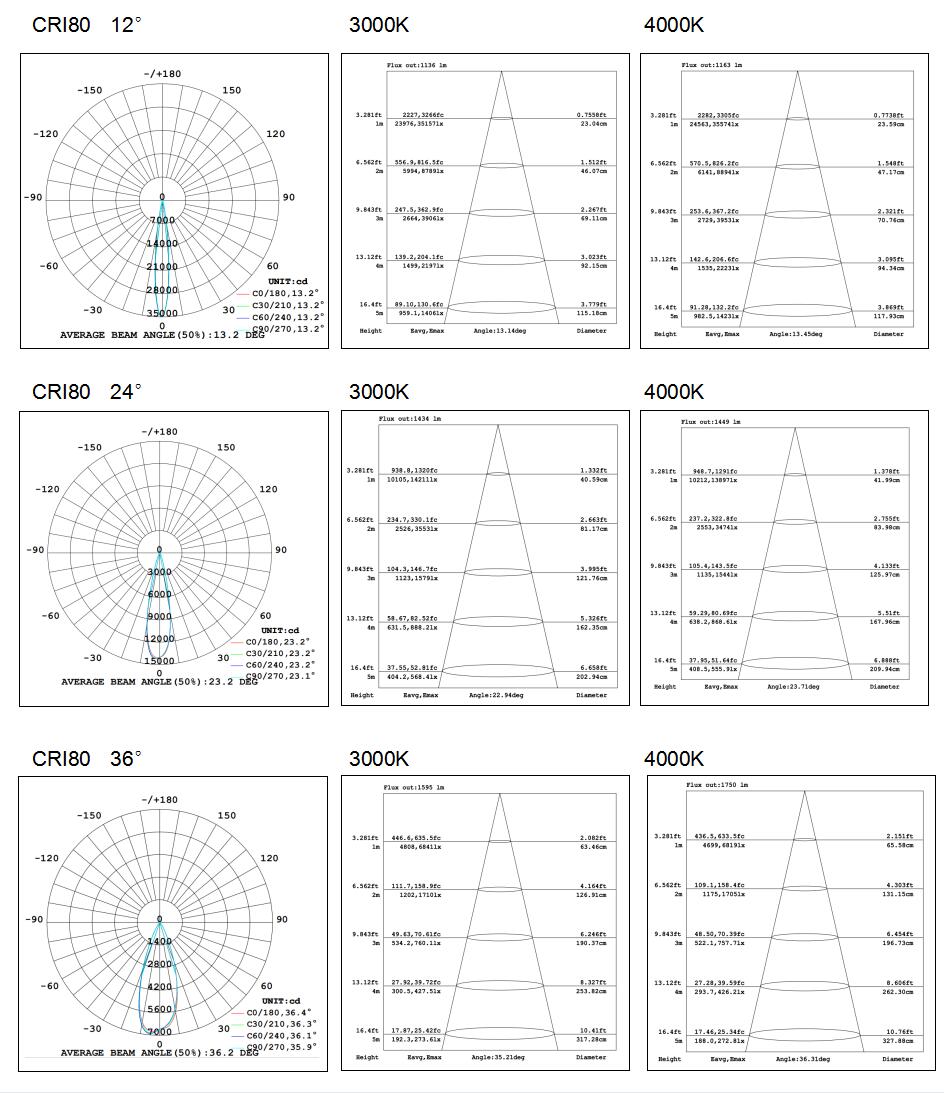

Technical Data
test pattern

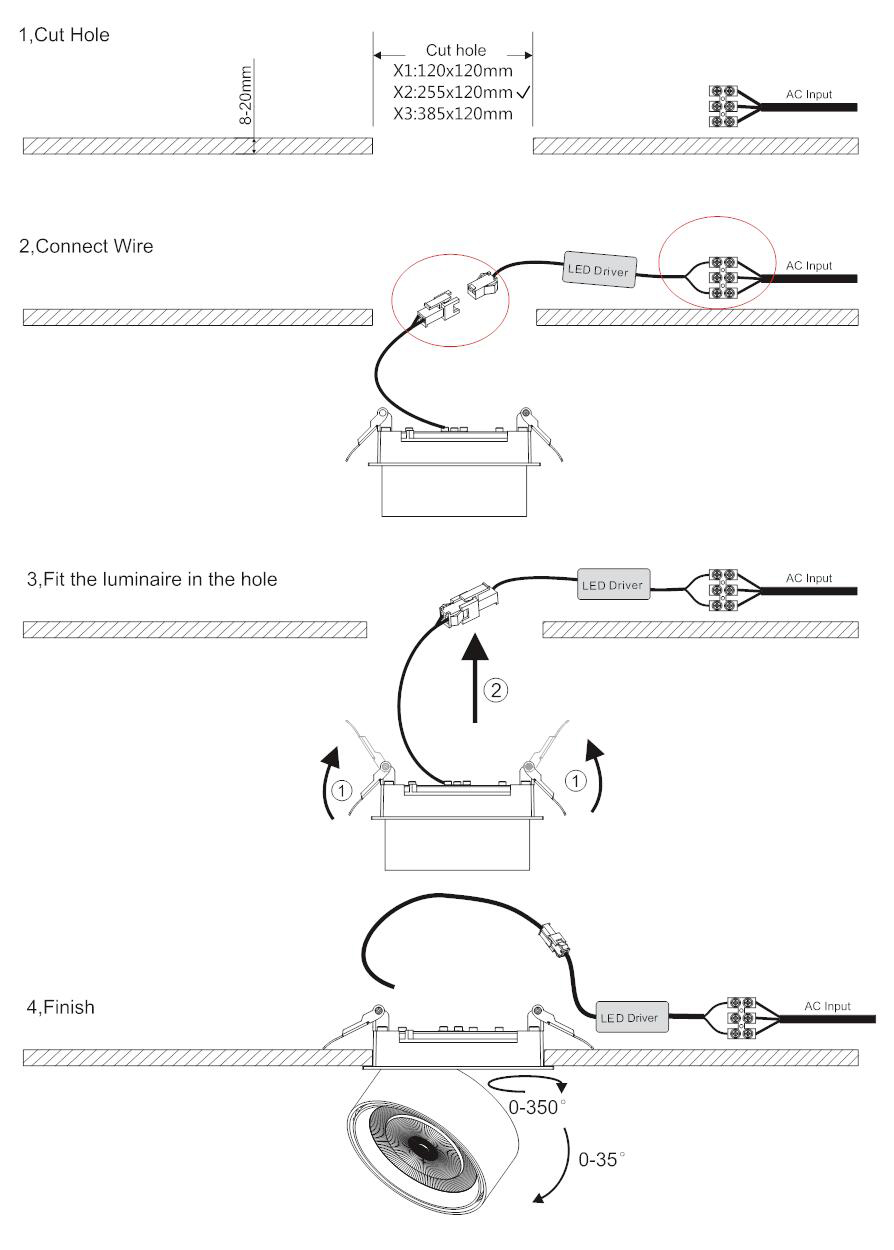

Installation
instruction
