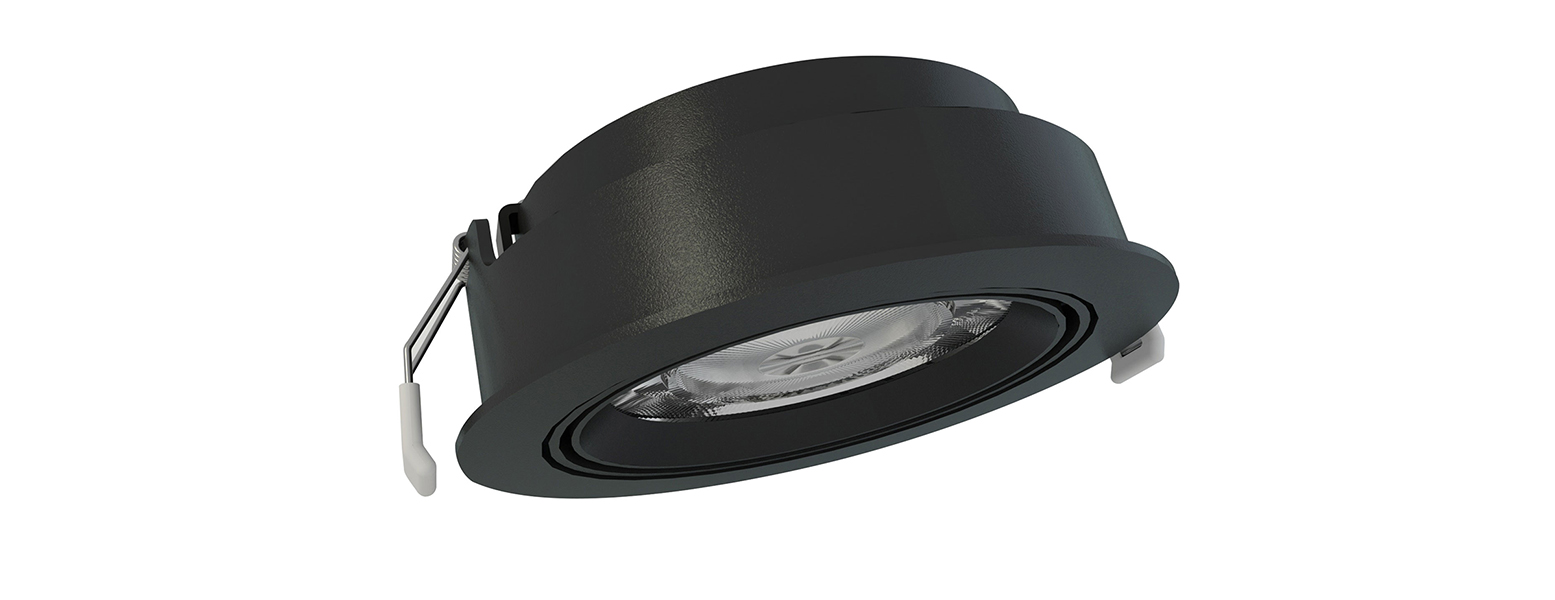

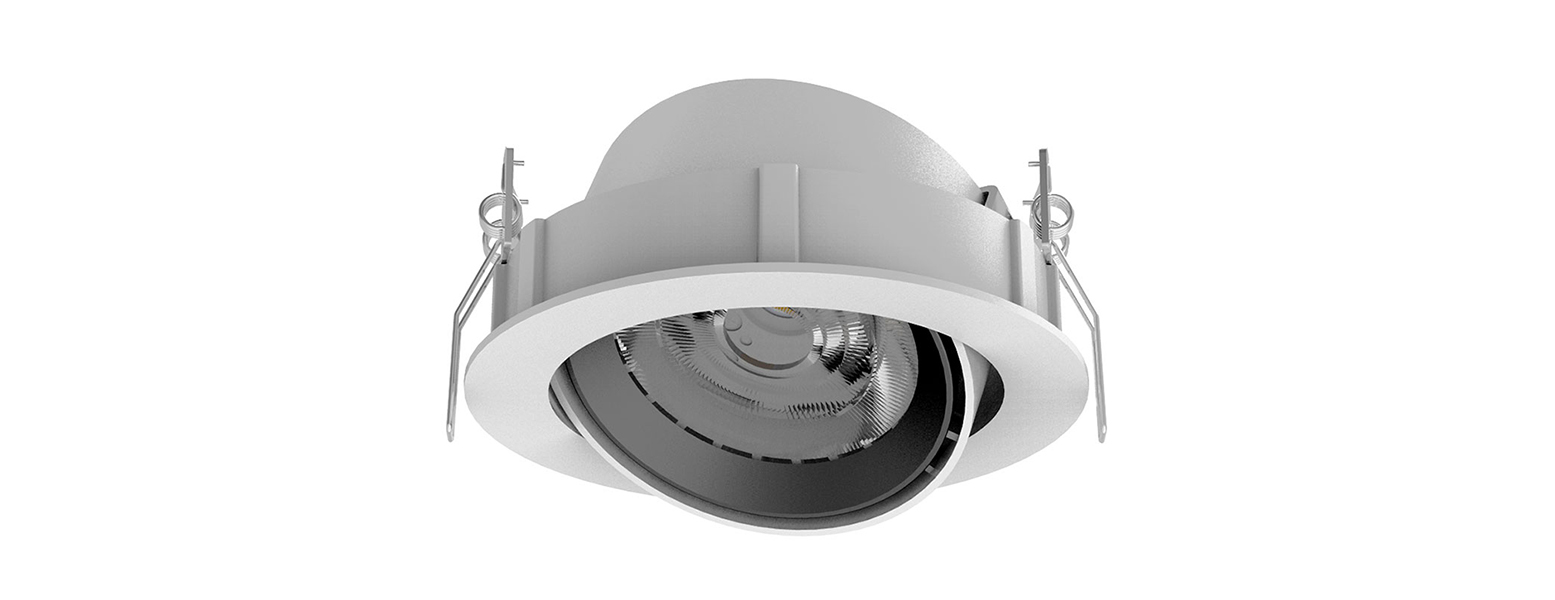

DL31-S-15W

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	350mA, 35-37V
Beam Angle：	12°/24°/36°/60°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	0.35kg

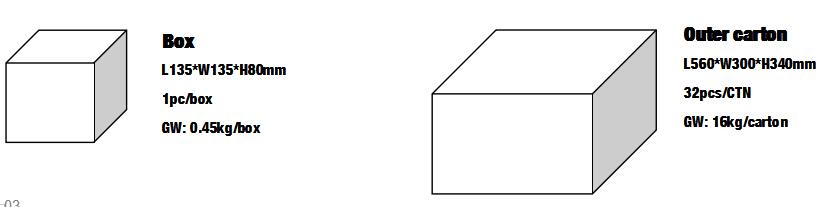

Packaging
information

System
overview

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
15W	>80	12°	1500 lm	3000K		DL311-15W-830-W-12-S
			1500 lm	3000K		DL311-15W-830-B-12-S
			1600 lm	4000K		DL311-15W-840-W-12-S
			1600 lm	4000K		DL311-15W-840-B-12-S
		24°	1480 lm	3000K		DL311-15W-830-W-24-S
			1480 lm	3000K		DL311-15W-830-B-24-S
			1580 lm	4000K		DL311-15W-840-W-24-S
			1580 lm	4000K		DL311-15W-840-B-24-S
		36°	1520 lm	3000K		DL311-15W-830-W-36-S
			1520 lm	3000K		DL311-15W-830-B-36-S
			1650 lm	4000K		DL311-15W-840-W-36-S
			1650 lm	4000K		DL311-15W-840-B-36-S
	>90	12°	1270 lm	3000K		DL311-15W-930-W-12-S
		12°	1270 lm	3000K		DL311-15W-930-B-12-S
		24°	1370 lm	3000K		DL311-15W-930-W-24-S
		24°	1370 lm	3000K		DL311-15W-930-B-24-S
		36°	1260 lm	3000K		DL311-15W-930-W-36-S
		36°	1260 lm	3000K		DL311-15W-930-B-36-S

Downloads

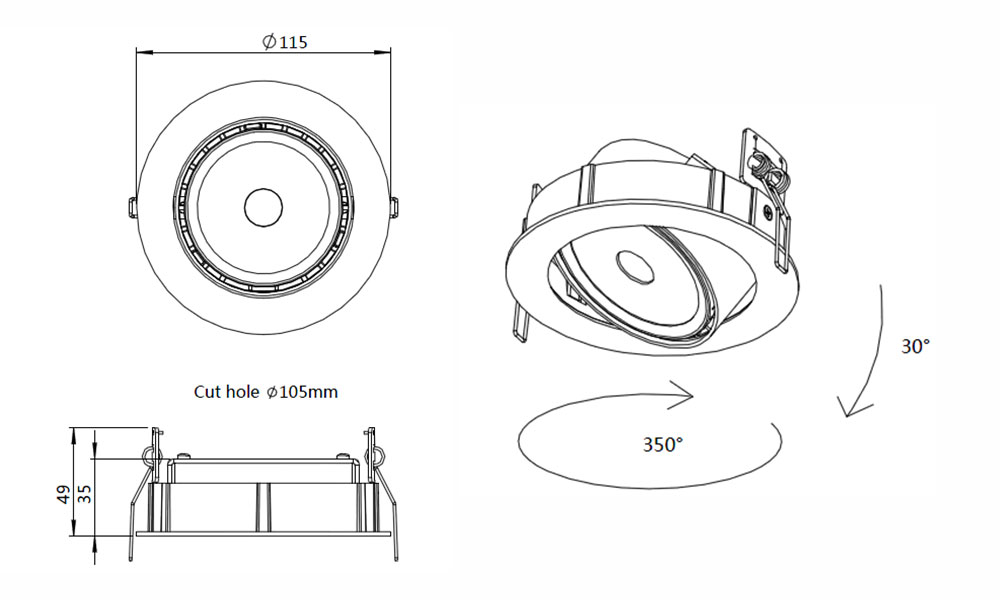

Size

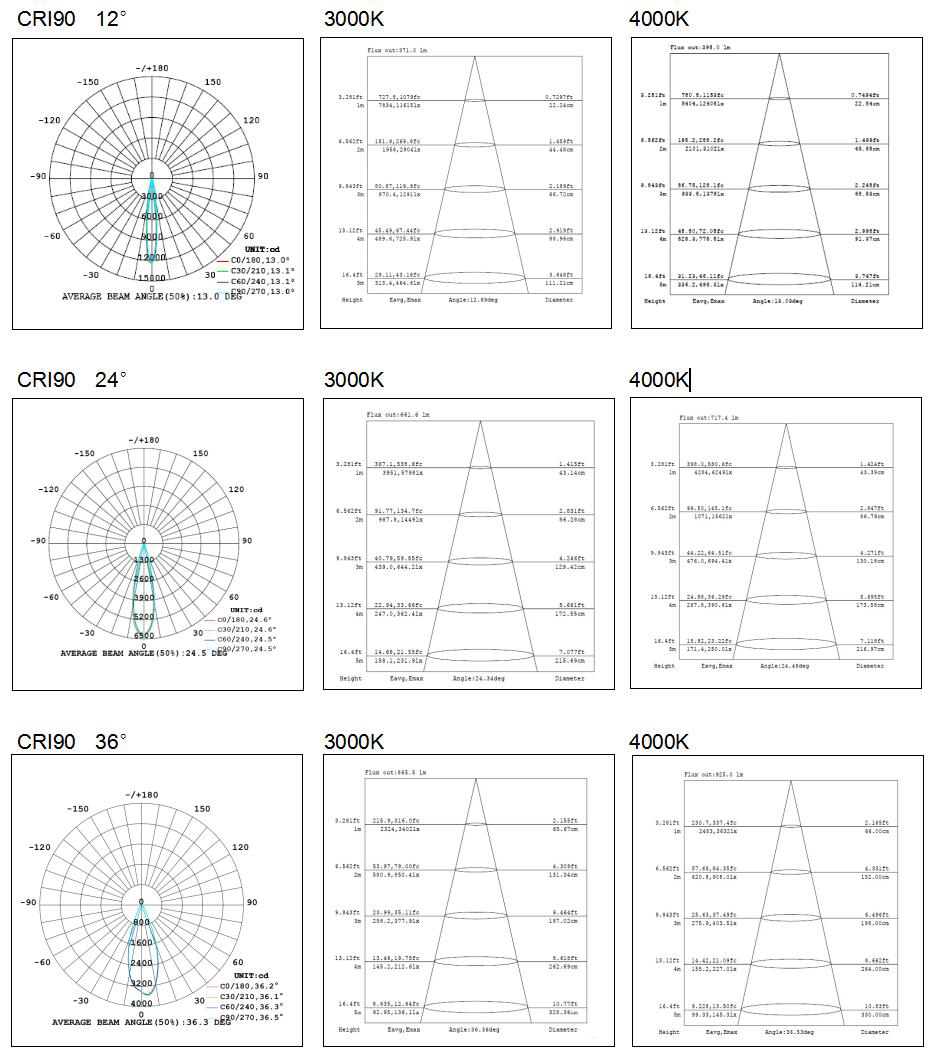

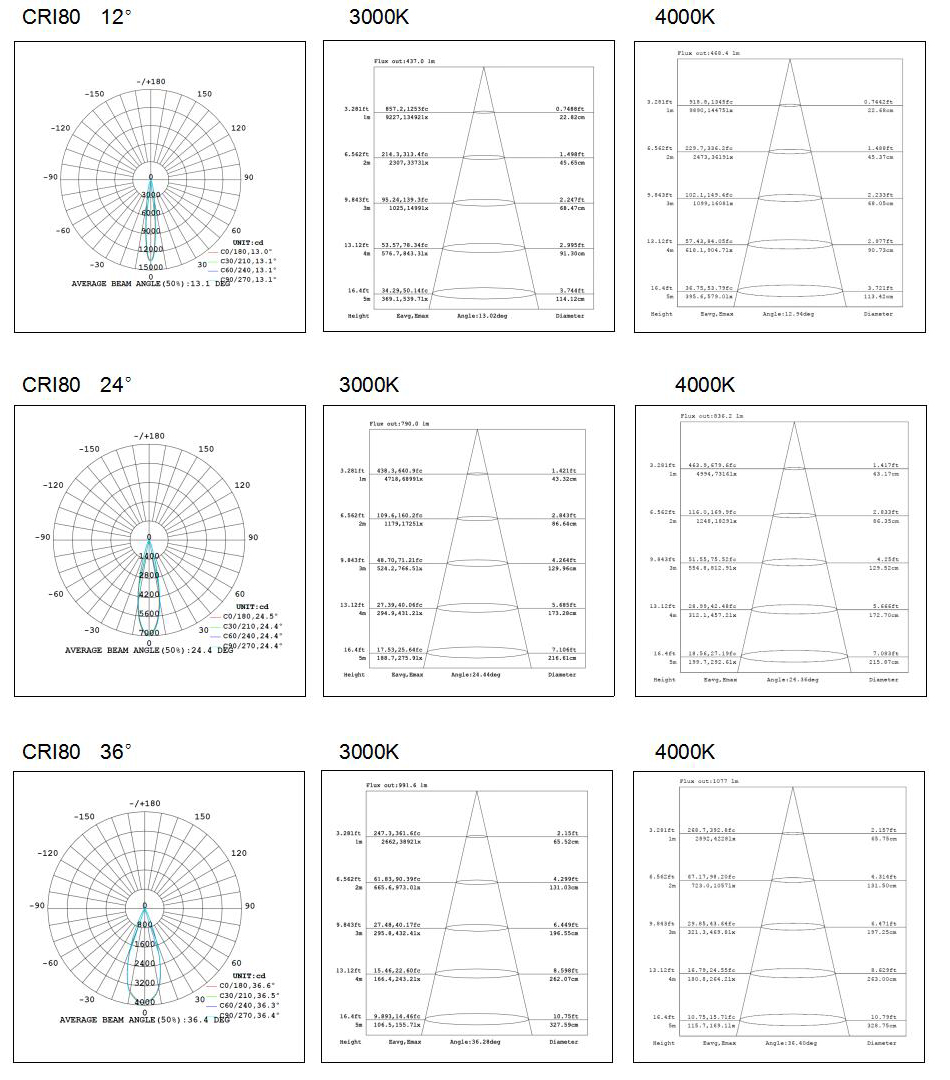

Technical Data test pattern

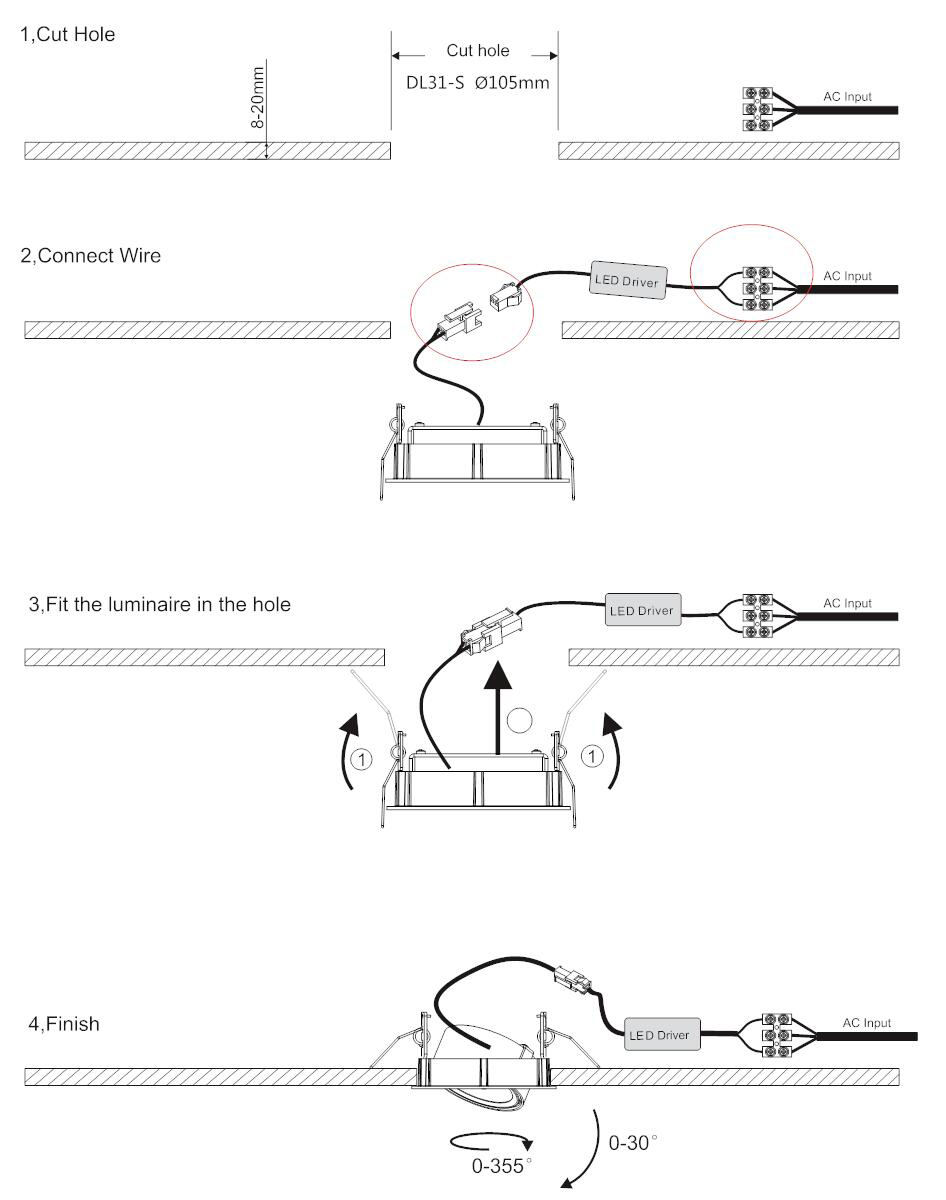

Installation instruction
