Products

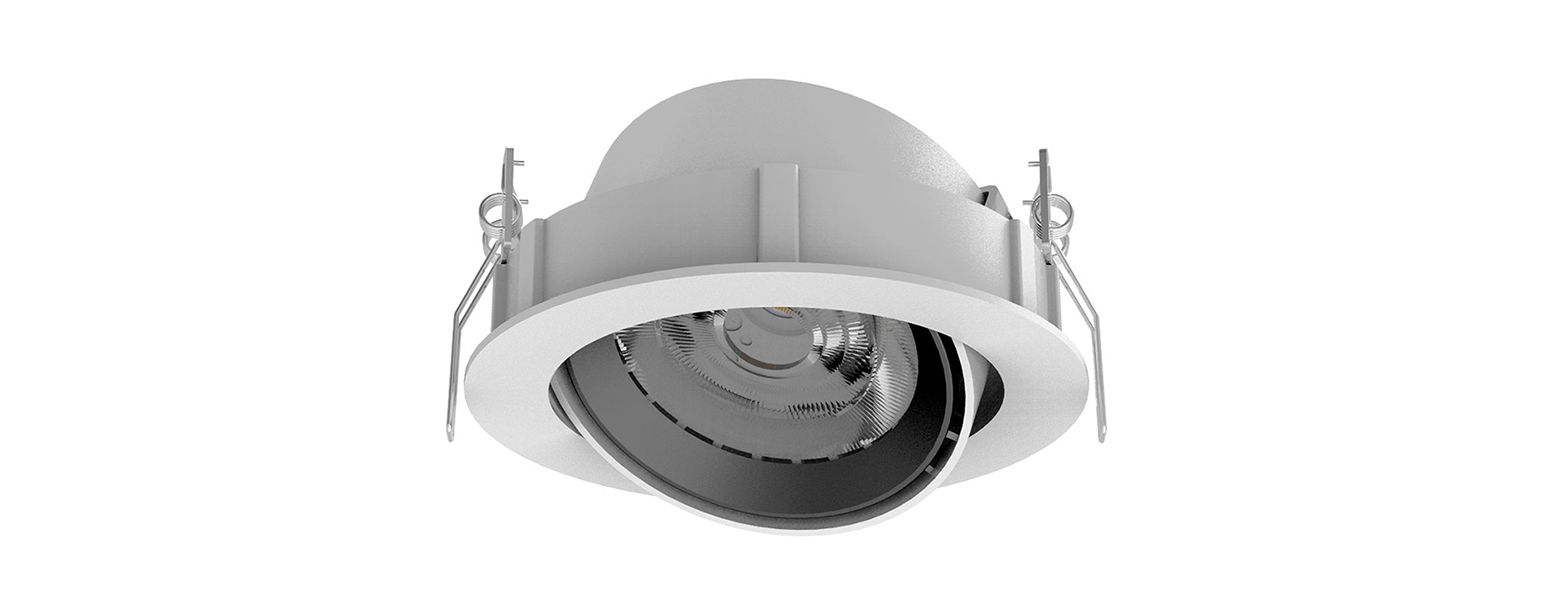

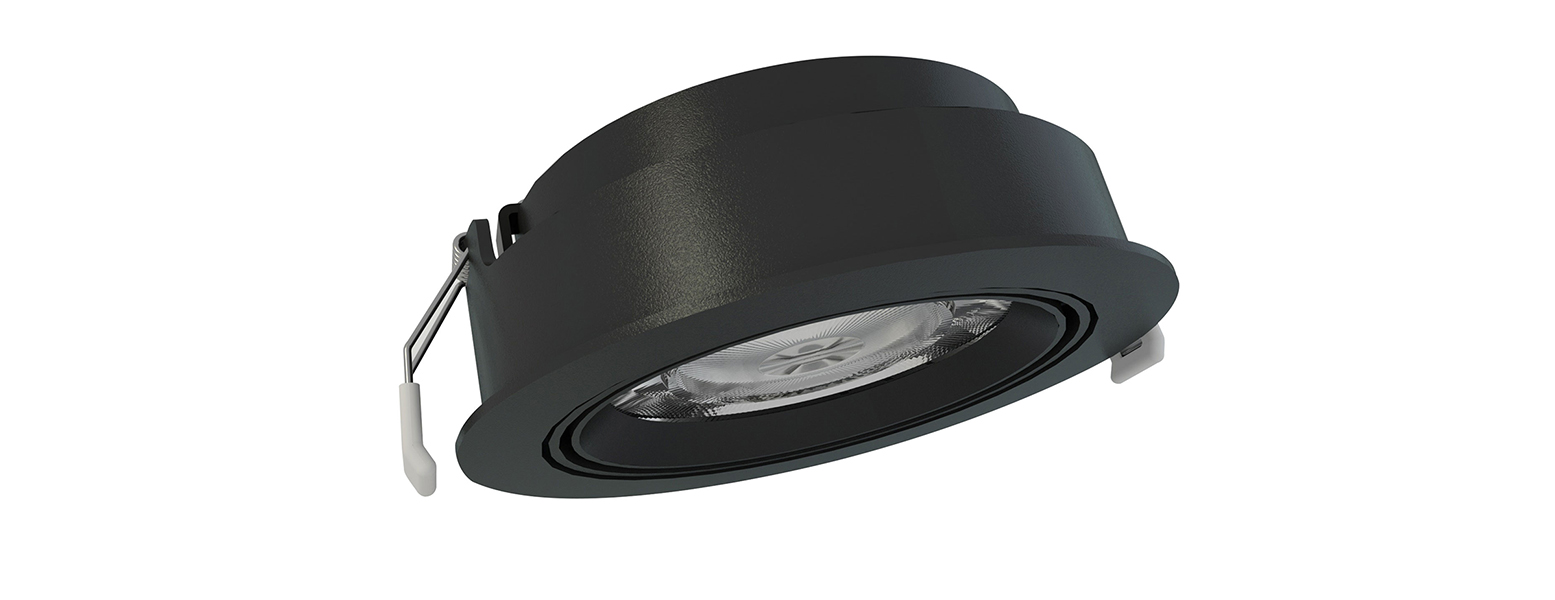

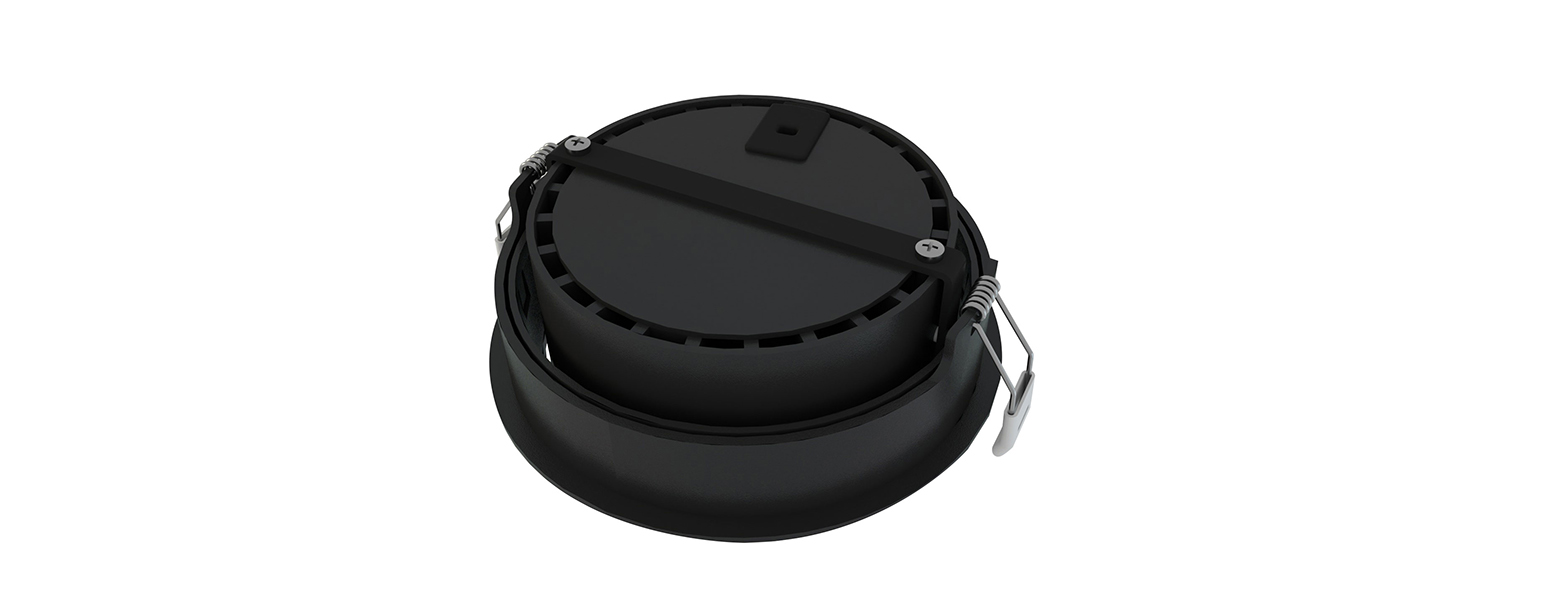

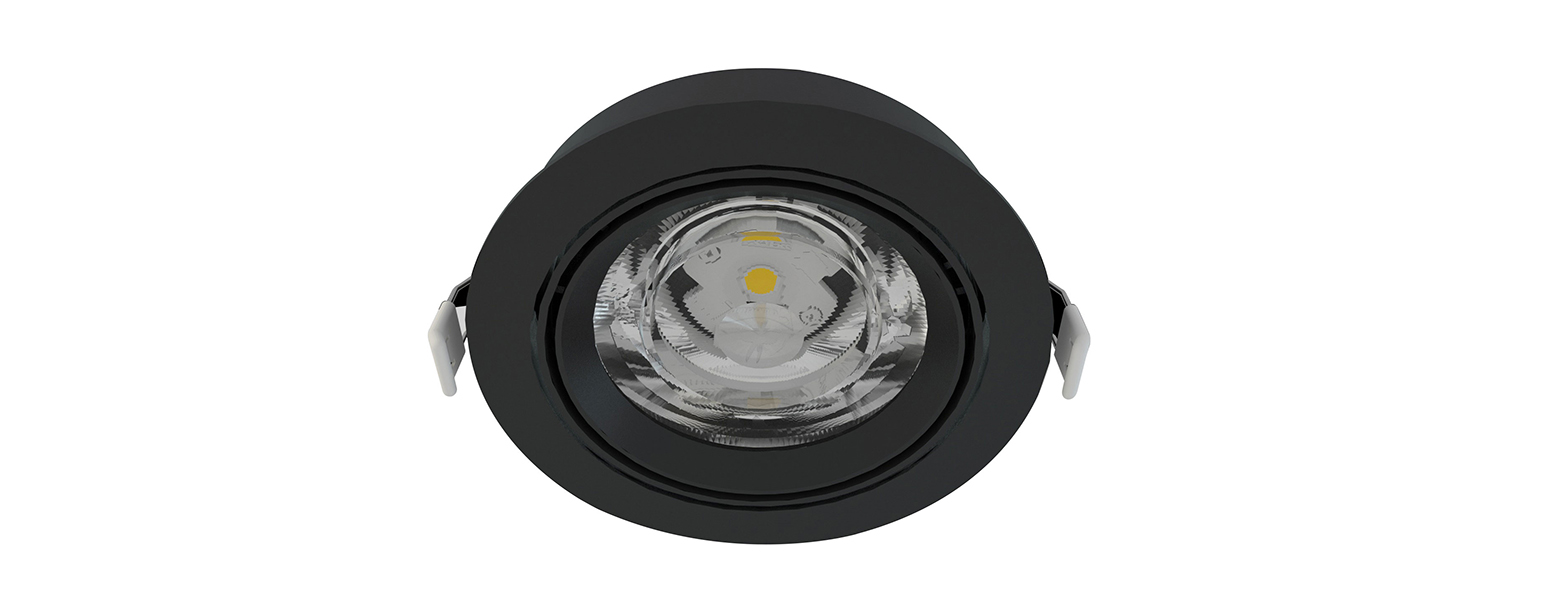

DL31-M-20W

Product
information

Light source:	COB
Input Voltage:	AC220~240V 50/60Hz
LED Current:	500mA, 35-37V
Beam Angle：	15°/20°/36°/48°/60°
Life Time:	> 50,000h - L80 - B10 (Ta 25°C)
Operating temperature:	-20℃~40℃
Certificate:	CE/RoHS
Weight:	0.45kg

Packaging
information

System
overview

Power	CRI	Beam Angle	Luminous	CCT	Housing	Part Number
20W	>80	15°	1910 lm	3000K		DL311-20W-830-W-15-M
			1910 lm	3000K		DL311-20W-830-B-15-M
			2102 lm	4000K		DL311-20W-840-W-15-M
			2102 lm	4000K		DL311-20W-840-B-15-M
		20°	1778 lm	3000K		DL311-20W-830-W-20-M
			1778 lm	3000K		DL311-20W-830-B-20-M
			1962 lm	4000K		DL311-20W-840-W-20-M
			1962 lm	4000K		DL311-20W-840-B-20-M
		36°	1870 lm	3000K		DL311-20W-830-W-36-M
			1870 lm	3000K		DL311-20W-830-B-36-M
			2086 lm	4000K		DL311-20W-840-W-36-M
			2086 lm	4000K		DL311-20W-840-B-36-M
	>90	15°	1566 lm	3000K		DL311-20W-930-W-15-M
		15°	1566 lm	3000K		DL311-20W-930-B-15-M
		20°	1766 lm	3000K		DL311-20W-930-W-20-M
		20°	1766 lm	3000K		DL311-20W-930-B-20-M
		36°	1672 lm	3000K		DL311-20W-930-W-36-M
		36°	1672 lm	3000K		DL311-20W-930-B-36-M

Downloads

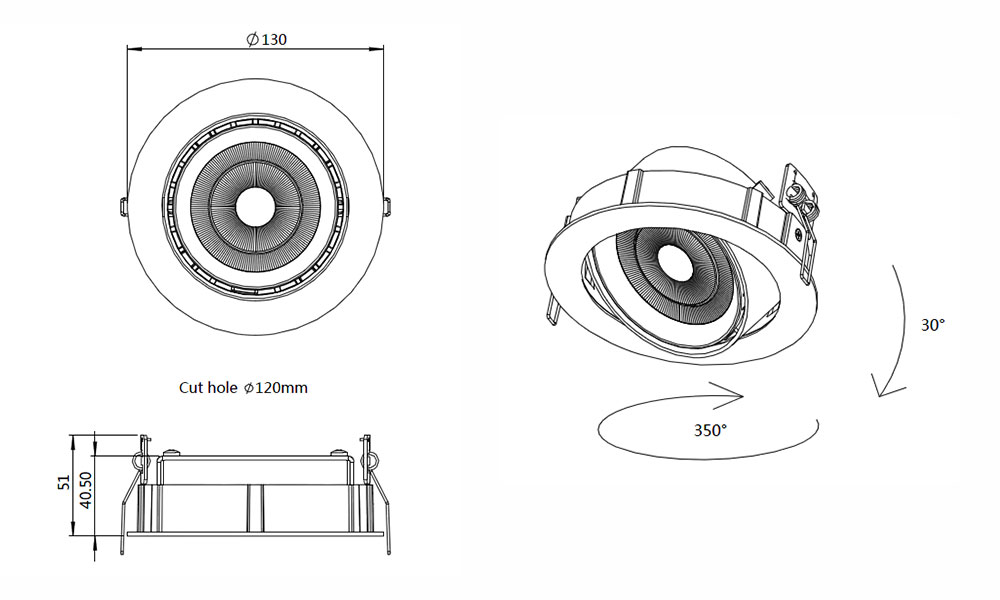

Size

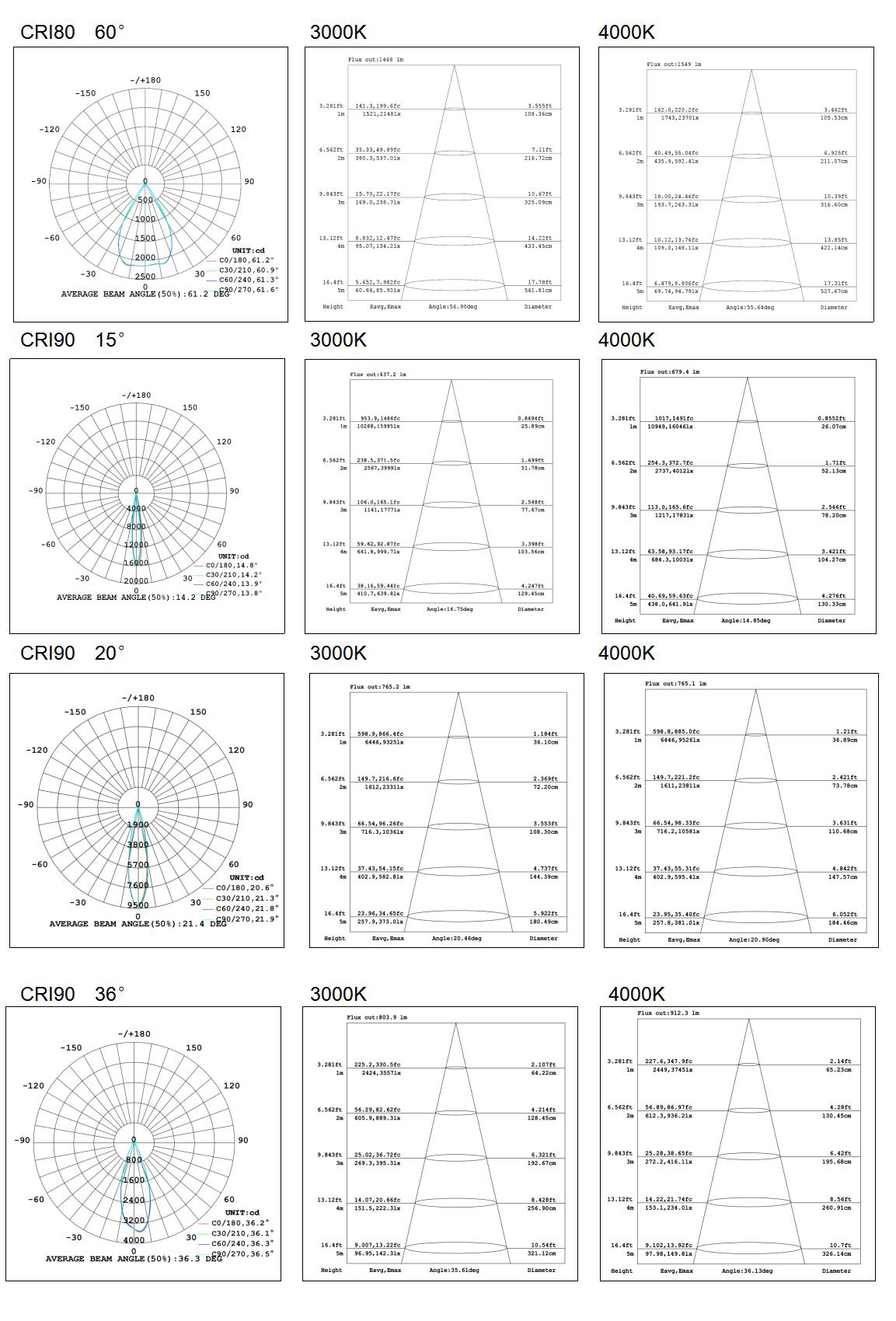

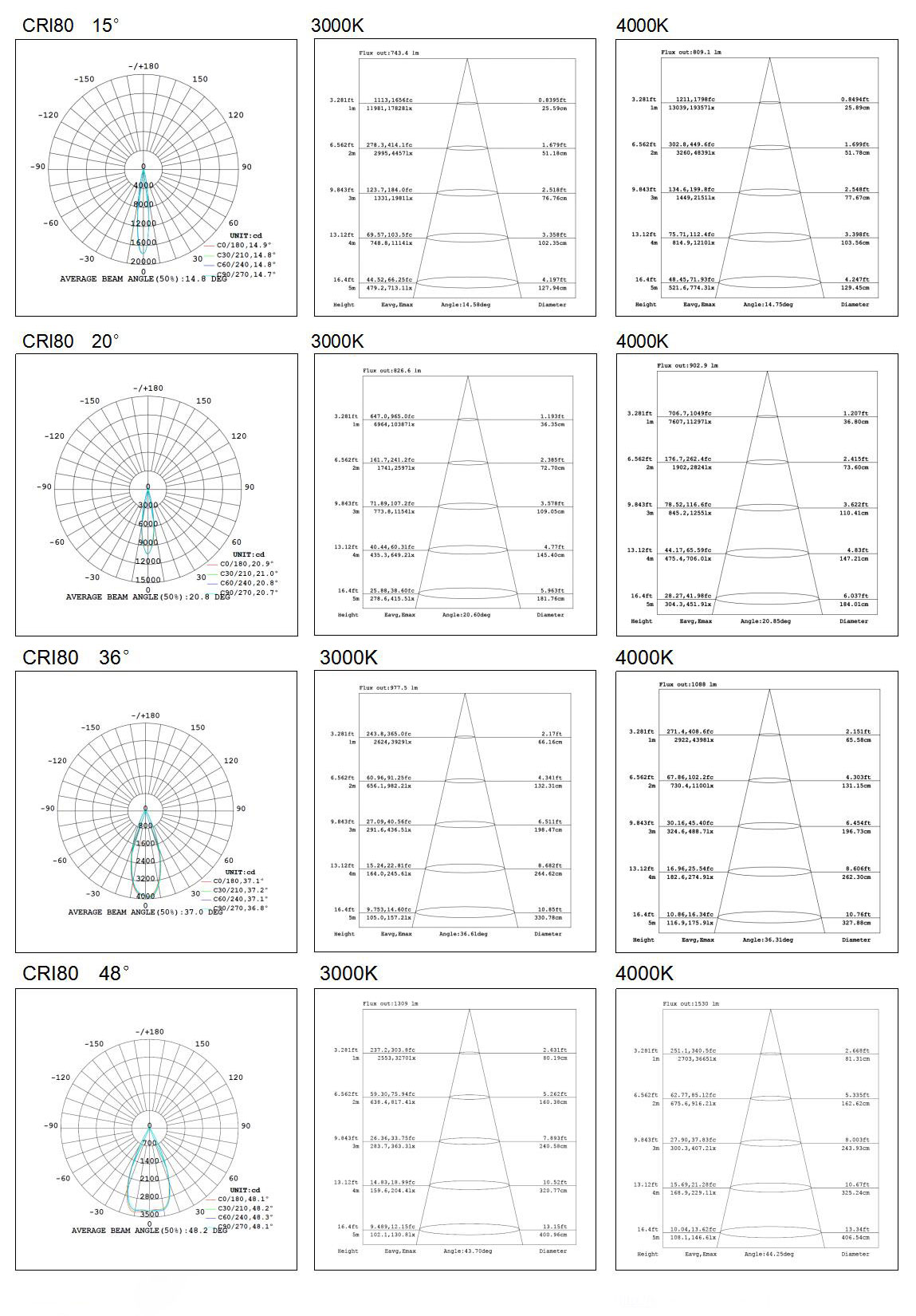

Technical Data test pattern

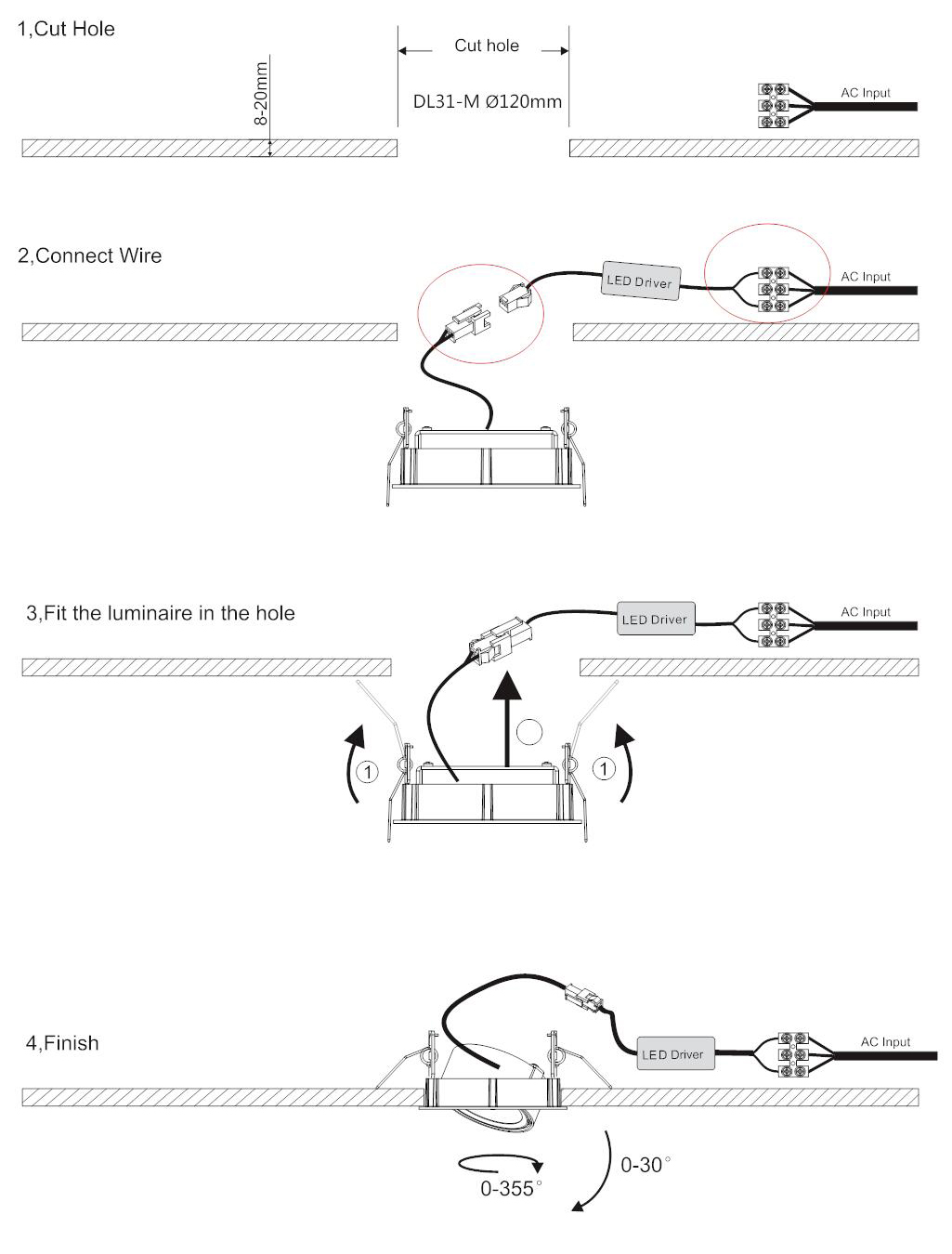

Installation instruction
