SD10-L-28W
Ceiling Surface
Products

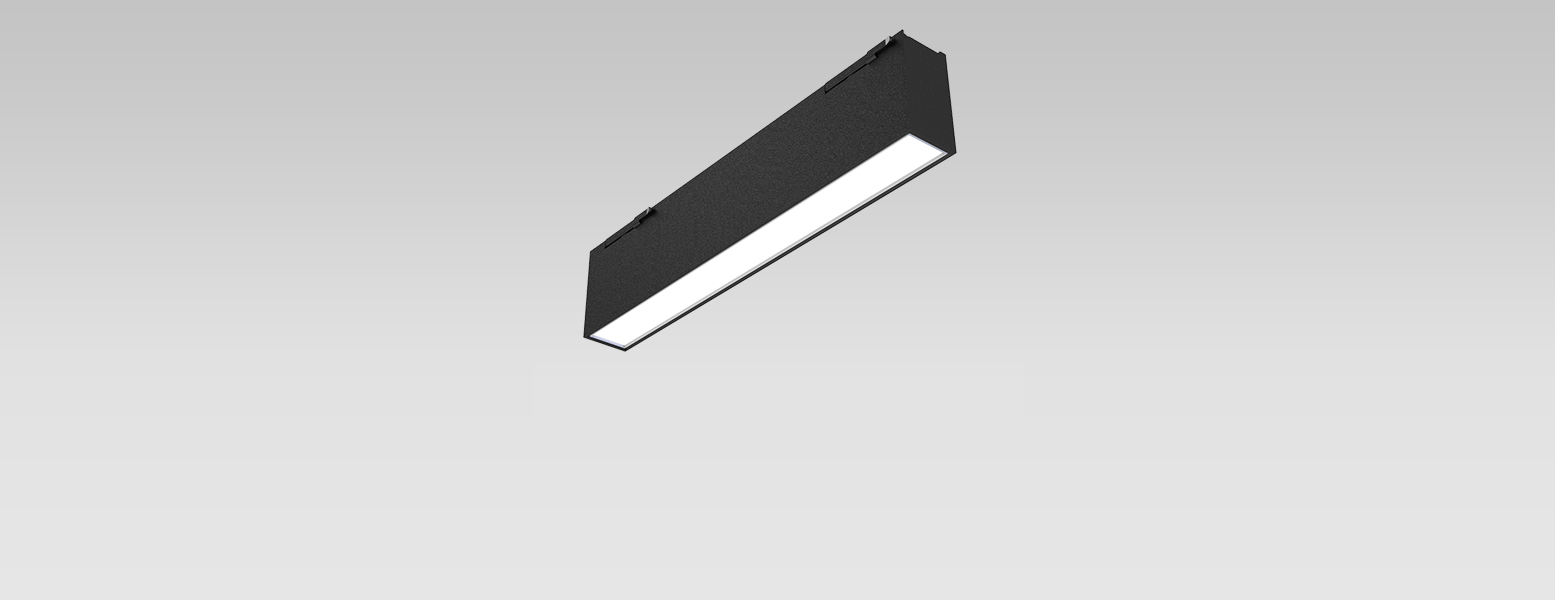

SD1-L328B/L646B/L964B
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: |
0.8KG(L328B) 1.4KG(L646B) 2.0KG(L964B) |
Packaging
information
System
overview
| length | Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 328mm | 15W | >80 | 90° | 1100 lm | 2700K | SD1-L328B-15W-827-W-90 | |
| SD1-L328B-15W-827-B-90 | |||||||
| 1150lm | 3000K | SD1-L328B-15W-830-W-90 | |||||
| SD1-L328B-15W-830-B-90 | |||||||
| 1200 lm | 4000K | SD1-L328B-15W-840-W-90 | |||||
| SD1-L328B-15W-840-B-90 | |||||||
| 646mm | 30W | >80 | 90° | 2200 lm | 2700K | SD1-L646B-30W-827-W-90 | |
| SD1-L646B-30W-827-B-90 | |||||||
| 2235 lm | 3000K | SD1-L646B-30W-830-W-90 | |||||
| SD1-L646B-30W-830-B-90 | |||||||
| 2230 lm | 4000K | SD1-L646B-30W-840-W-90 | |||||
| SD1-L646B-30W-840-B-90 | |||||||
| 964mm | 40W | >80 | 90° | 3050lm | 2700K | SD1-L964B-40W-840-W-90 | |
| SD1-L964B-40W-840-B-90 | |||||||
| 3100 lm | 4000K | SD1-L964B-40W-840-W-90 | |||||
| SD1-L964B-40W-840-B-90 | |||||||
| 3150 lm | 3000K | SD1-L964B-40W-840-W-90 | |||||
| SD1-L964B-40W-840-B-90 |
Downloads

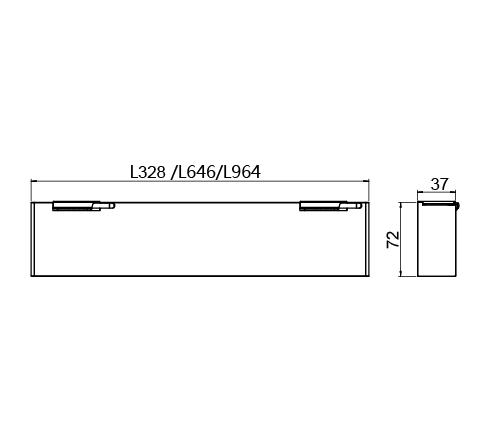

Size
Need more informations? Contact us
