SD091-30W

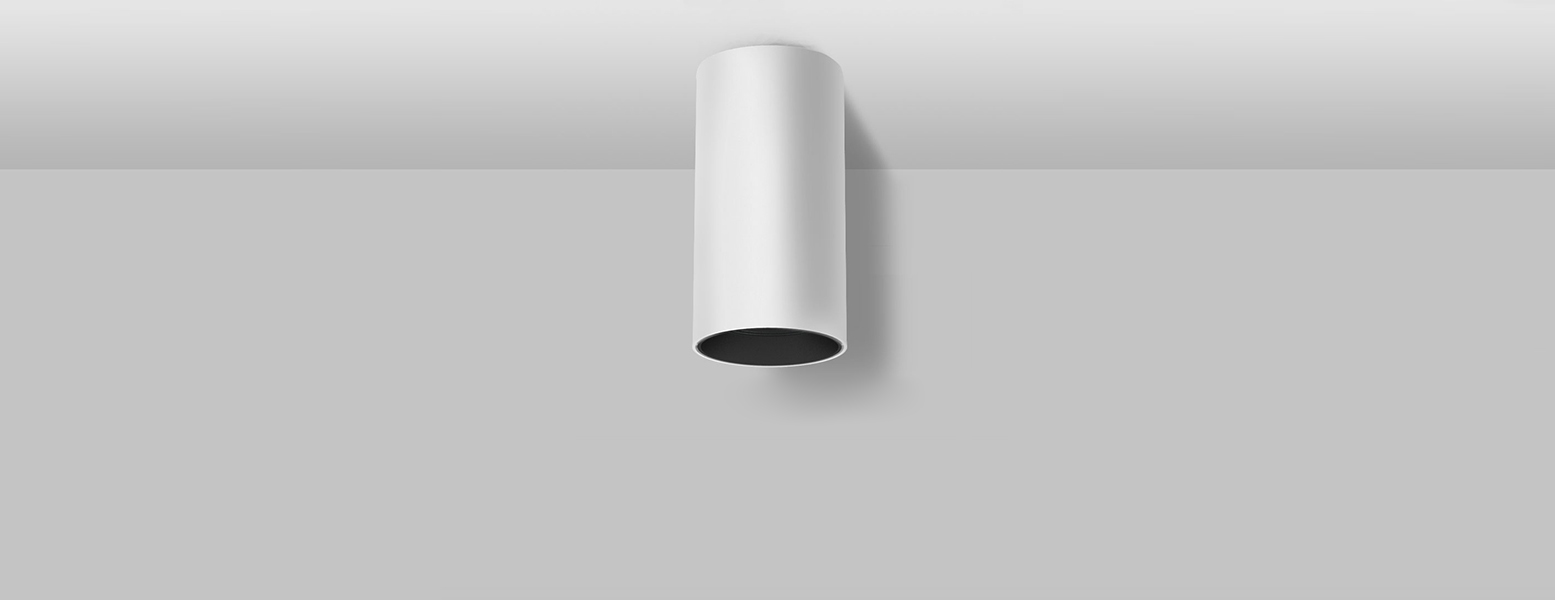

Using the same lamp body and optical system from the iTrack Pro series, it provides high efficient performance and maximized visual comfort. Featuring with a cylinder and round shape, it can be extended to track mounted and pendant options.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 700mA , 34-36V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | NON-Dimmable |
| Weight: | 1.1KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 30W | >80 | 12° | 2680 lm | 3000K | SD091-30W-830-W-12 | |
| SD091-30W-830-B-12 | ||||||
| 2940 lm | 4000K | SD091-30W-840-W-12 | ||||
| SD091-30W-840-B-12 | ||||||
| 24° | 2730 lm | 3000K | SD091-30W-830-W-24 | |||
| SD091-30W-830-B-24 | ||||||
| 2940 lm | 4000K | SD091-30W-840-W-24 | ||||
| SD091-30W-840-B-24 | ||||||
| 36° | 2685 lm | 3000K | SD091-30W-830-W-36 | |||
| SD091-30W-830-B-36 | ||||||
| 2940 lm | 4000K | SD091-30W-840-W-36 | ||||
| SD091-30W-840-B-36 | ||||||
| >90 | 12° | 2285 lm | 3000K | SD091-30W-930-W-12 | ||
| SD091-30W-930-B-12 | ||||||
| 2440 lm | 4000K | SD091-30W-940-W-12 | ||||
| SD091-30W-940-B-12 | ||||||
| 24° | 2345 lm | 3000K | SD091-30W-930-W-24 | |||
| SD091-30W-930-B-24 | ||||||
| 2475 lm | 4000K | SD091-30W-940-W-24 | ||||
| SD091-30W-940-B-24 | ||||||
| 36° | 2310 lm | 3000K | SD091-30W-930-W-36 | |||
| SD091-30W-930-B-36 | ||||||
| 2440 lm | 4000K | SD091-30W-940-W-36 | ||||
| SD091-30W-940-B-36 |
Downloads

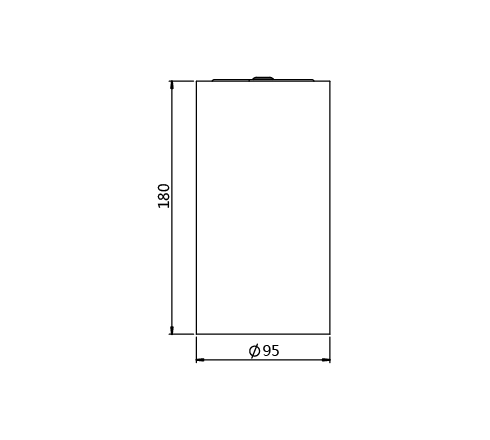

Size
Need more informations? Contact us
