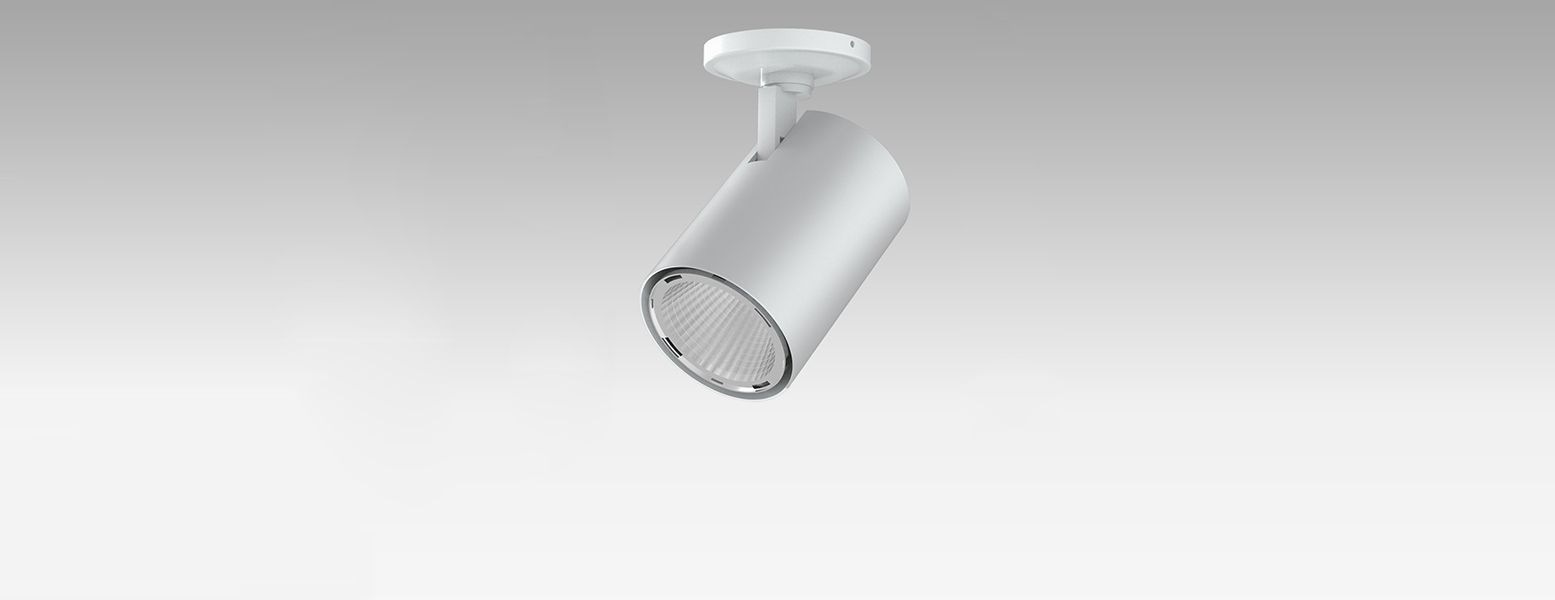

RL072-40W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 1000mA (35-37V) |
| Rated life: | > 50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE RoHS |
| Weight: | 1.55KG |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 40W | >80 | 12° | 4140 lm | 3000K | RL072-40W-830-W-12 | |
| 4420 lm | 4000K | RL072-40W-840-W-12 | ||||
| 20° | 4180 lm | 3000K | RL072-40W-830-W-20 | |||
| 4350 lm | 4000K | RL072-40W-840-W-20 | ||||
| 45° | 4030 lm | 3000K | RL072-40W-830-W-45 | |||
| 4140 lm | 4000K | RL072-40W-840-W-45 | ||||
| >90 | 12° | 3030 lm | 3000K | RL072-40W-930-W-12 | ||
| 3700 lm | 4000K | RL072-40W-940-W-12 | ||||
| 20° | 3550 lm | 3000K | RL072-40W-930-W-20 | |||
| 3740 lm | 4000K | RL072-40W-940-W-20 | ||||
| 45° | 3400 lm | 3000K | RL072-40W-930-W-45 | |||
| 3650 lm | 4000K | RL072-40W-940-W-45 |
Downloads

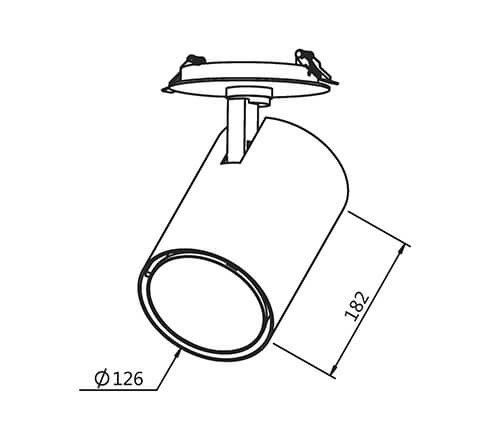

Size
Need more informations? Contact us
