SD10-L-28W
Ceiling Surface
Products
ALST85-34
Product
information
| Product number | ALSP85 - 32 |
| Input Voltage (v): | 220-240V AC |
| Dimming | On/Off，Triac，1-10V，DALI |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | 350 |
| Tilting Angle (degree) | 90 |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.96 |
| G.W. Carton (Kg) | 14 |
| Master carton dimensions(mm) | 720x295x220 |
| Quantity per carton(PCS) | 10 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
21 |
32W | 90 | 3060.1 lm | 4000K | ALST85S-NC32G40-S |
| 2886.9 lm | 3000K | ALST85S-NC32G30-S | |||
| 2684.8 lm | 2700K | ALST85S-NC32G27-S | |||
25 |
32W | 90 | 2987.5 lm | 4000K | ALST85S-NC32G40-M |
| 2818.4 lm | 3000K | ALST85S-NC32G30-M | |||
| 2621.1 lm | 2700K | ALST85S-NC32G27-M | |||
35 |
32W | 90 | 2925.8 lm | 4000K | ALST85S-NC32G40-F |
| 2760.2 lm | 3000K | ALST85S-NC32G30-F | |||
| 2566.9 lm | 2700K | ALST85S-NC32G27-F | |||
45 |
32W | 90 | 2945.6 lm | 4000K | ALST85S-NC32G40-WF |
| 2778.9 lm | 3000K | ALST85S-NC32G30-WF | |||
| 2584.4 lm | 2700K | ALST85S-NC32G27-WF |
Downloads

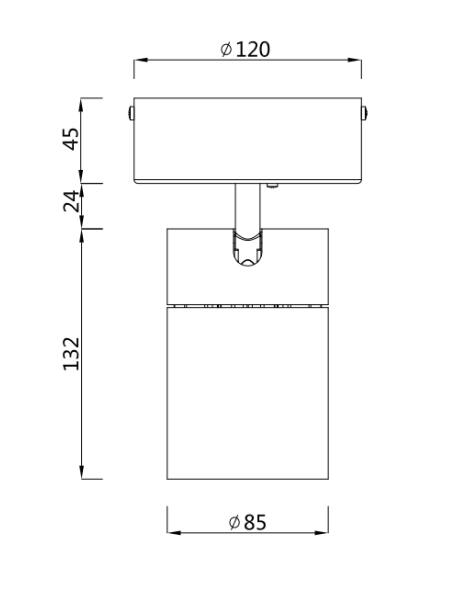

Size
Need more informations? Contact us
