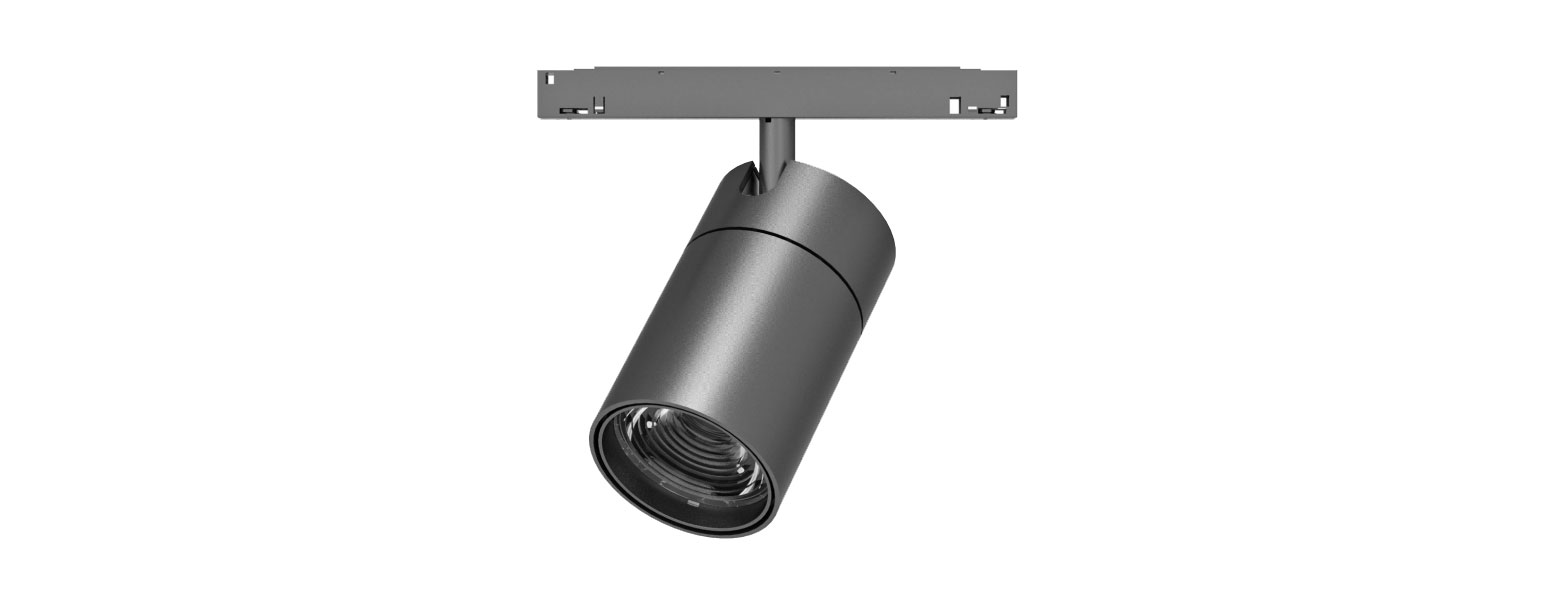

ALT70-L20(Magnetic)
48V Track Mounted
Product number: | ALT70 - L20 |
Track System: | 2 wire, 4 wire |
Input Voltage (v): | 48VDC |
Dimming: | On/Off,1-10V,DALI |
Light source: | COB LED |
luminaire Lifetime: | 50.000h(L80-B10, Ta25°C) |
Rotation Angle (degree): | 350 |
Tilting Angle (degree): | 90 |
IP Rating: | 20 |
Working Temperature (°C) | -5 ~ +30 |
Storage Temperature (°C) | -20 ~ +50 |
Material: | Aluminium |
Fitting Colors: | 9016 Sandy White / 9017 Sandy Black |
N.W. lamp (Kg): | 0.6 |
G.W. Carton (Kg): | 12 |
Master carton dimensions(mm): | 430x430x390 |
Quantity per carton: | 16 |
Beam | Watt | CRI | Luminous | CCT | Code |
16 |
20W | 90 | 1820.0 lm | 4000K | ALT70S-4LNC20G40-S |
1717.0 lm | 3000K | ALT70S-4LNC20G30-S | |||
1596.8 lm | 2700K | ALT70S-4LNC20G27-S | |||
22 |
20W | 90 | 1809.4 lm | 4000K | ALT70S-4LNC20G40-M |
1707.0 lm | 3000K | ALT70S-4LNC20G30-M | |||
1587.5 lm | 2700K | ALT70S-4LNC20G27-M | |||
34 |
20W | 90 | 1679.2 lm | 4000K | ALT70S-4LNC20G40-F |
1584.2 lm | 3000K | ALT70S-4LNC20G30-F | |||
1473.3 lm | 2700K | ALT70S-4LNC20G27-F | |||
43 |
20W | 90 | 1644.7 lm | 4000K | ALT70S-4LNC20G40-WF |
1551.6 lm | 3000K | ALT70S-4LNC20G30-WF | |||
1443.0 lm | 2700K | ALT70S-4LNC20G27-WF |
